The machinable pipe diameter can reach Φ 90 × 2.0mm. All actions are electrically controlled.Multi bend radius left or right bend.

Four - six axis precision servo control: bending crankshaft, feed shaft, rotation shaft, auxiliary push shaft/lift shaft, translation shaft.

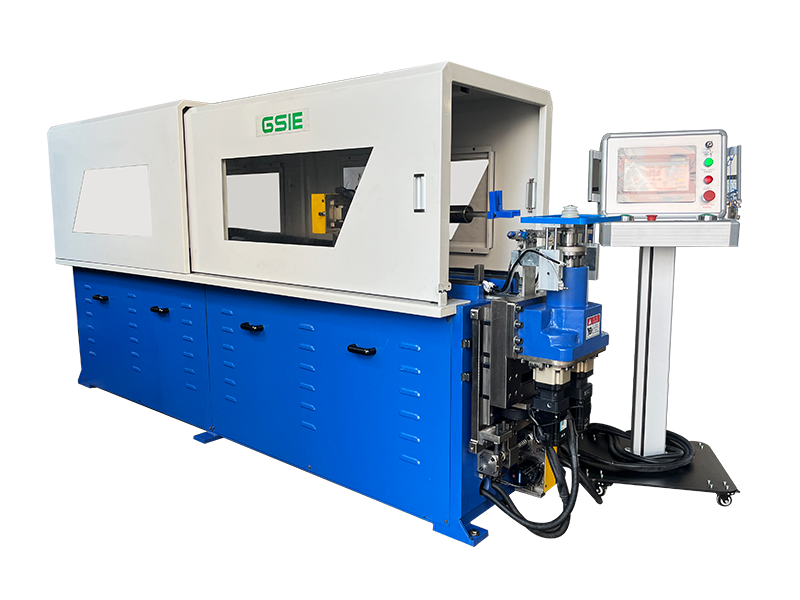

The WXJ series CNC wire bending machine is a specialized processing equipment designed for solid wire bending, capable of bending wires with diameters ranging from ф 4 to ф 12 (copper, aluminum). The wire clamping mechanism of this machine adopts pneumatic control, with Y, B, and C coordinates. The head lifting, lateral movement, wheel mold rotation, and lever rotation are driven by servo. The whole machine control adopts microcomputer control, which can achieve complex functions such as four axis synchronous movement, active bending, and passive bending.
