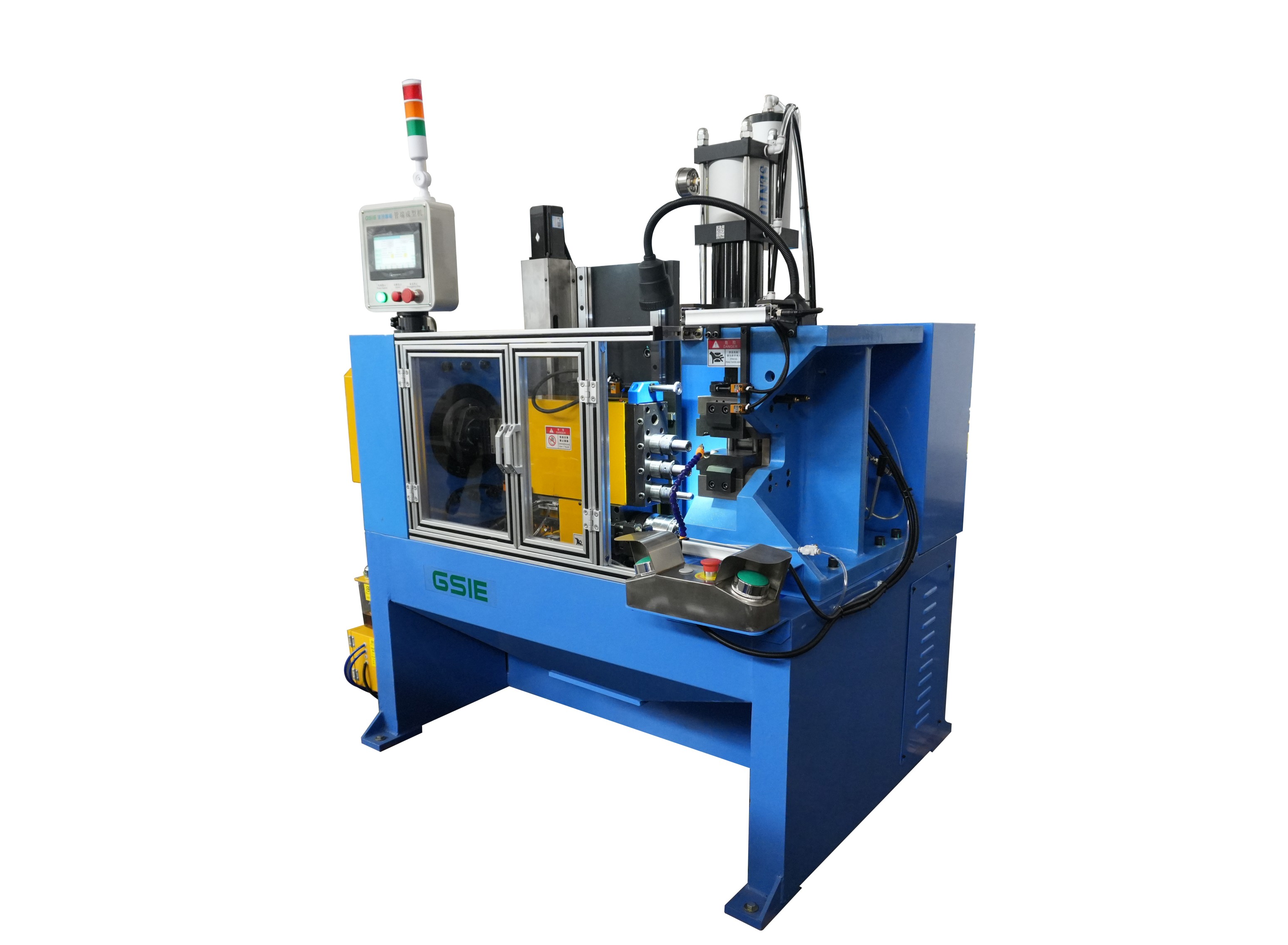

This machine features single-side chamfering and four-station forming, enabling the process of first chamfering and then forcibly forming tubes made of steel, copper, aluminum, etc., through four-station powerful extrusion. It can achieve complex tube-end forming and the connection of various coaxial tubular parts. The clamping and punching mechanisms of this machine adopt a single hydraulic power system, offering strong extrusion force and stable performance. The punch position change is driven by a servo motor combined with a ball screw transmission, ensuring precise and accurate positioning.

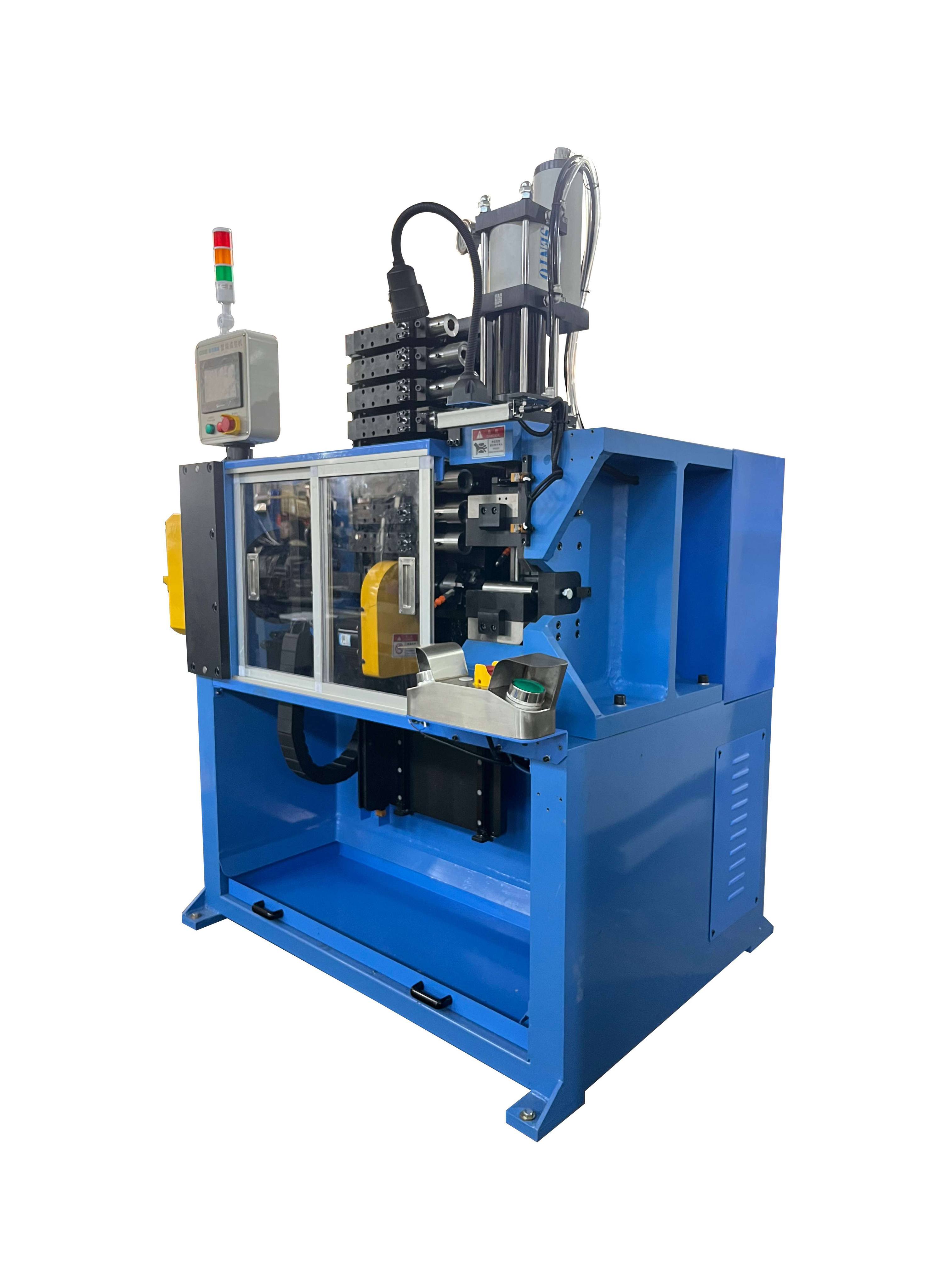

This high-performance eight-station electric forming and chamfering machine integrates tube extrusion and chamfering into a single platform. Its eight servo-positioned forming stations work in sync with a dedicated

chamf ering unit, enabling seamless, start-to-finish processing that significantly boosts productivity.

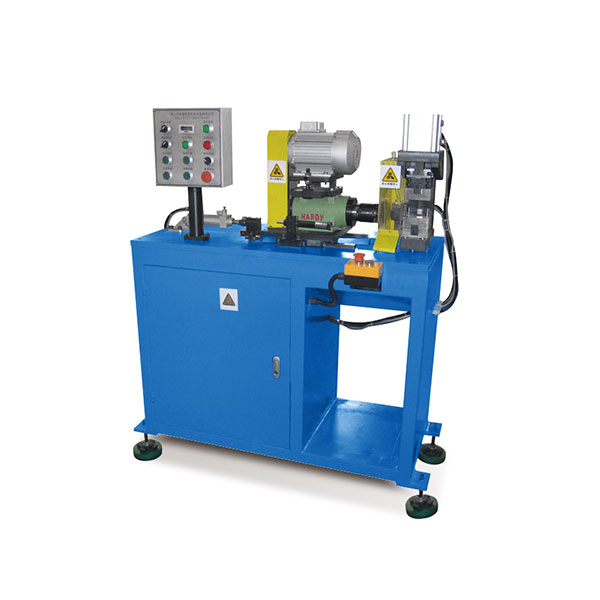

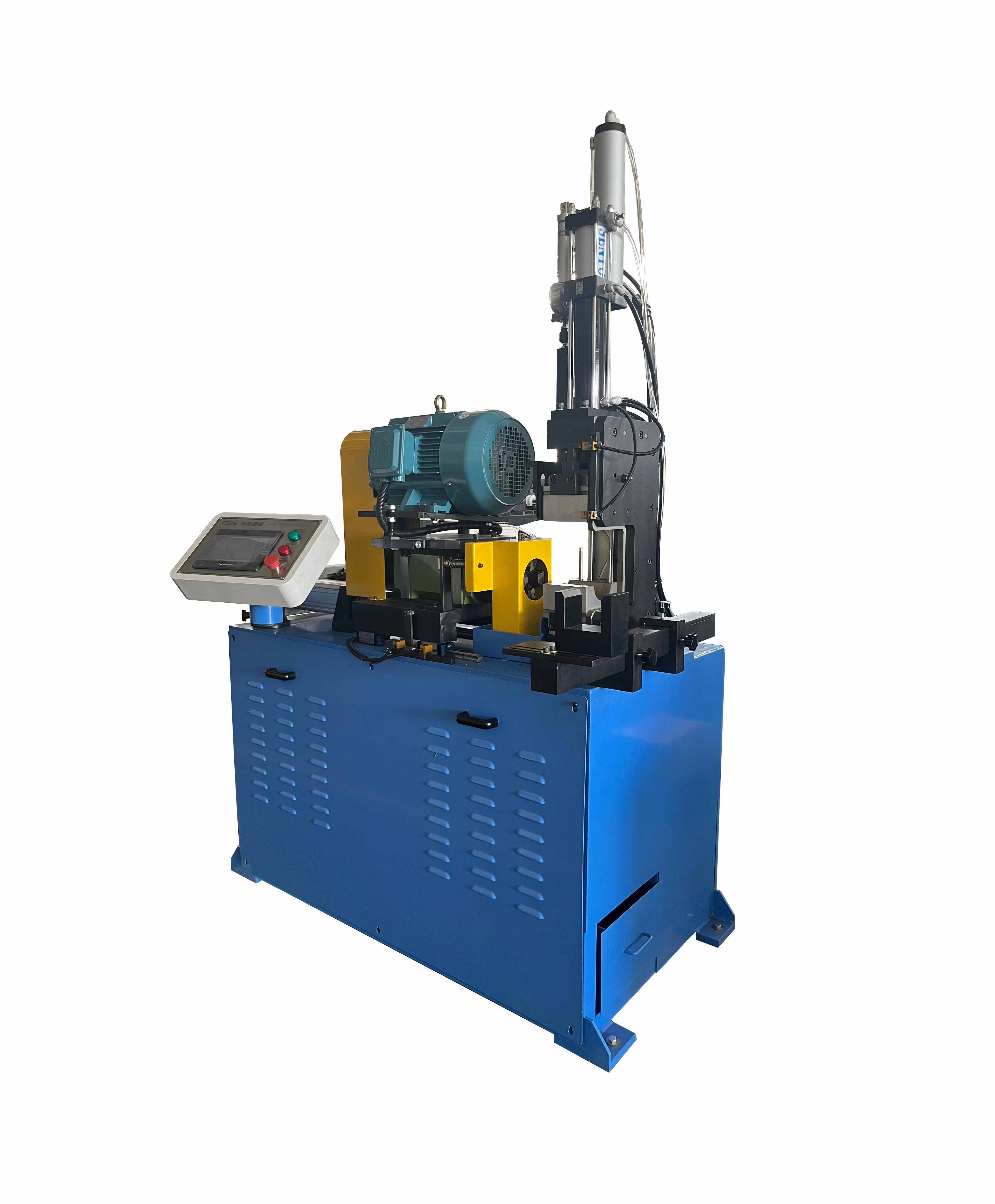

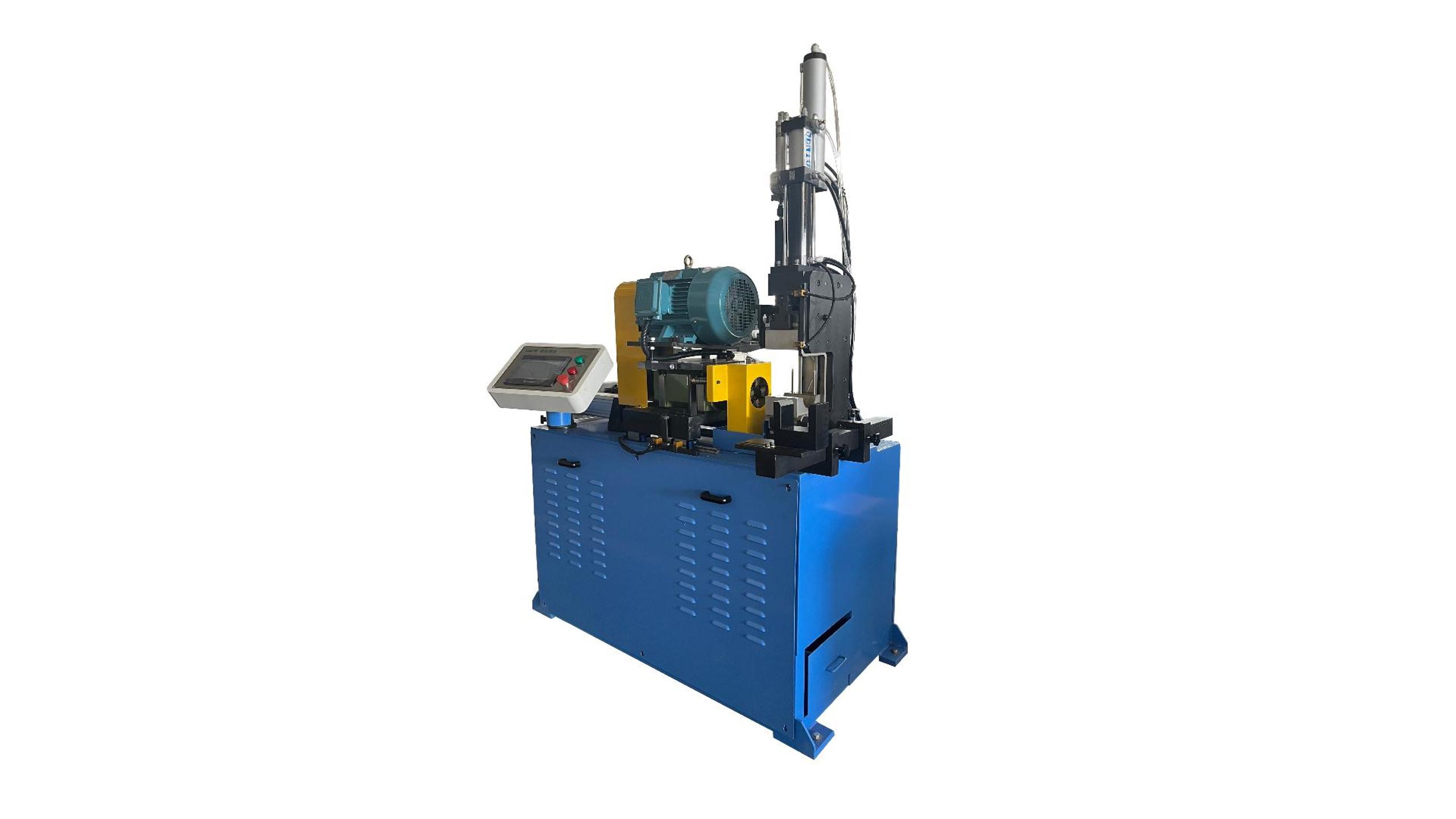

A single-spindle chamfering machine is specialized equipment for processing the end faces, outer edges, and inner corners of pipes. It features automatic feeding and automatic engagement/retraction of the cutting tool, delivering high speed and superior precision. This machine is ideally suited for the batch processing of pipe fittings.

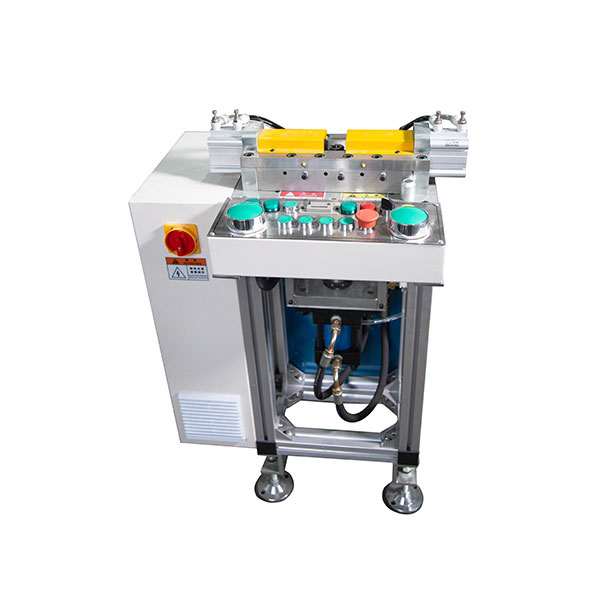

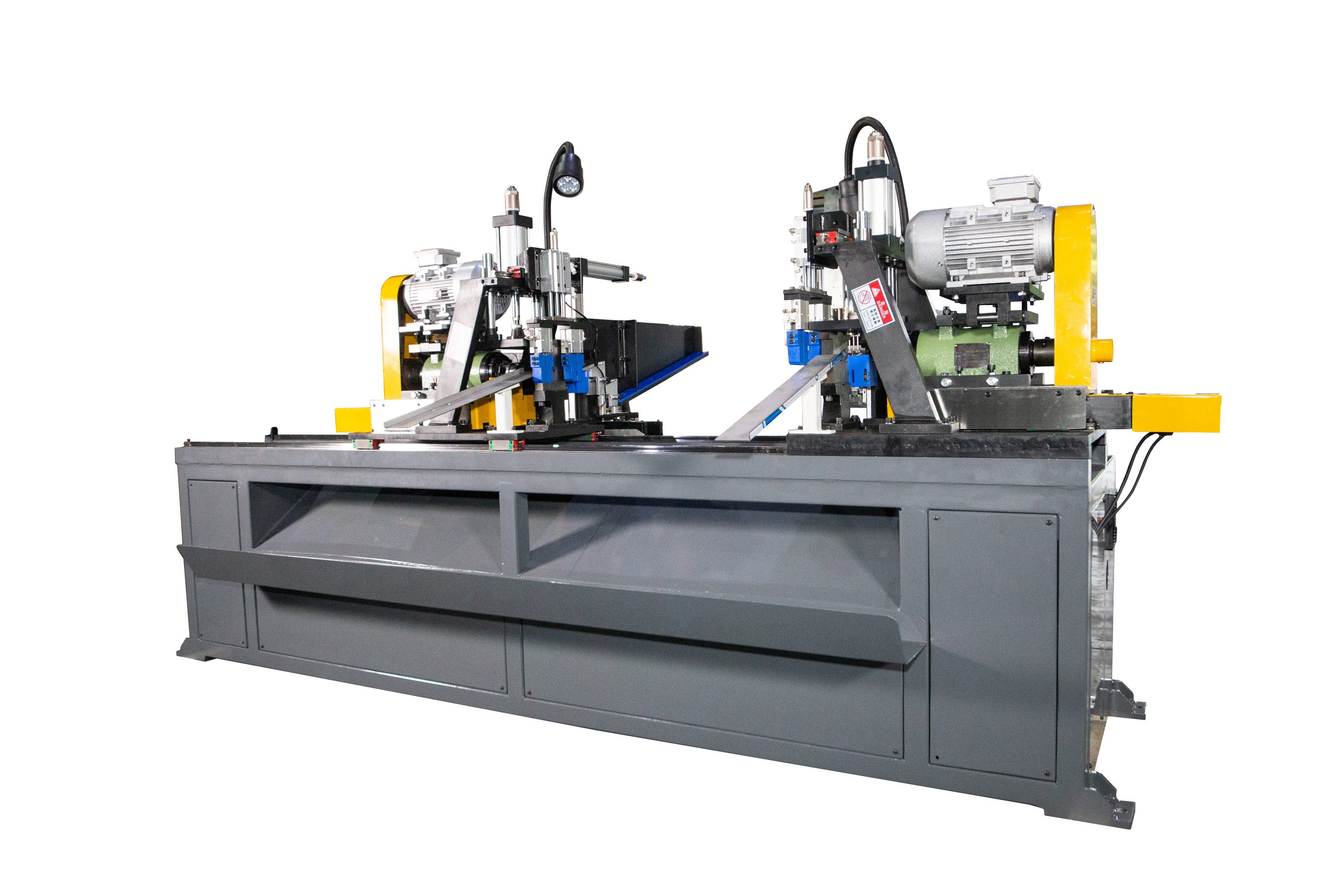

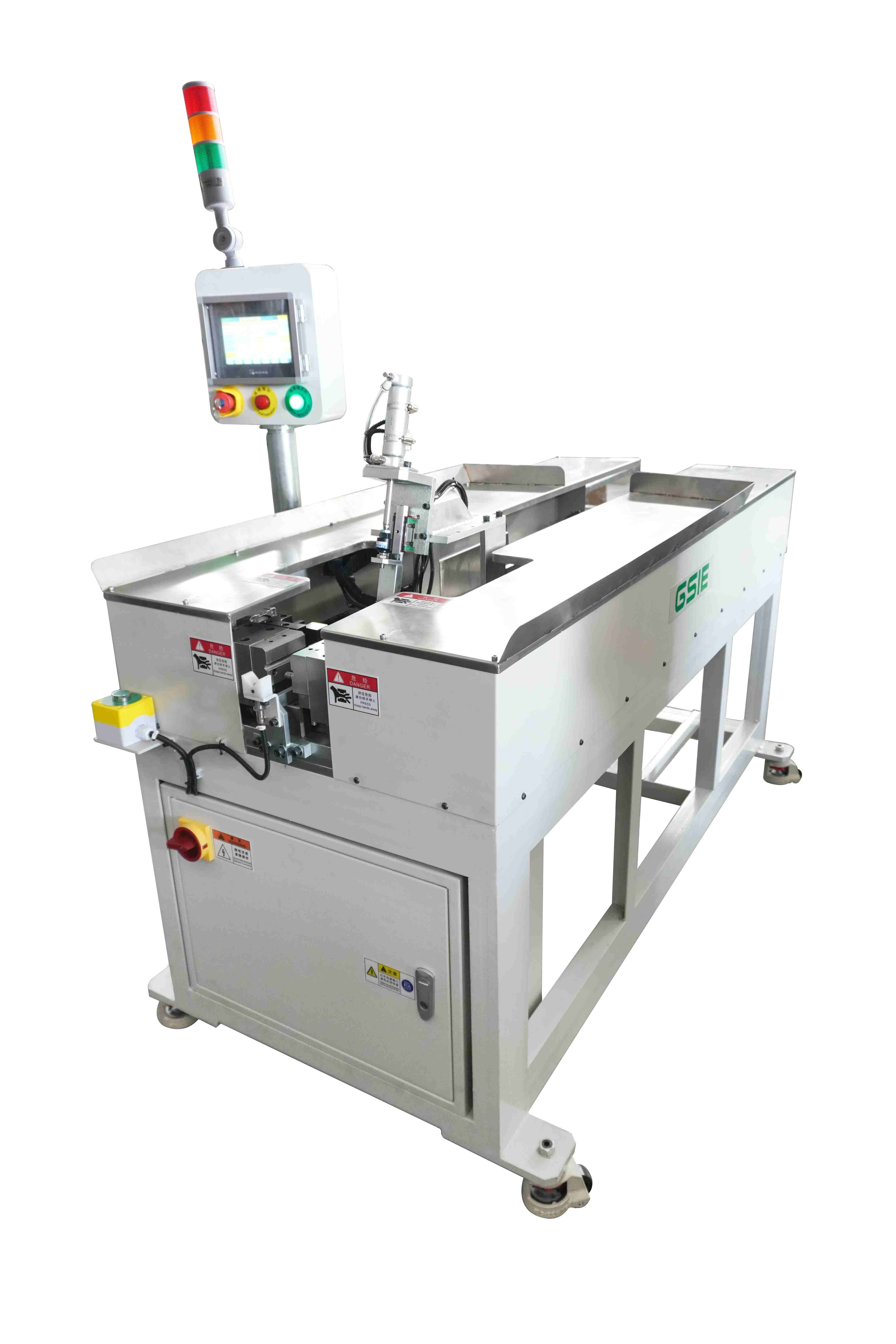

Automatically chamfering for both end of tube simultaneously. Easy operatiing and high efficiency. Applicable for tube:OD Ф8-Ф20 mm. thickness :＜ 1.8mm.

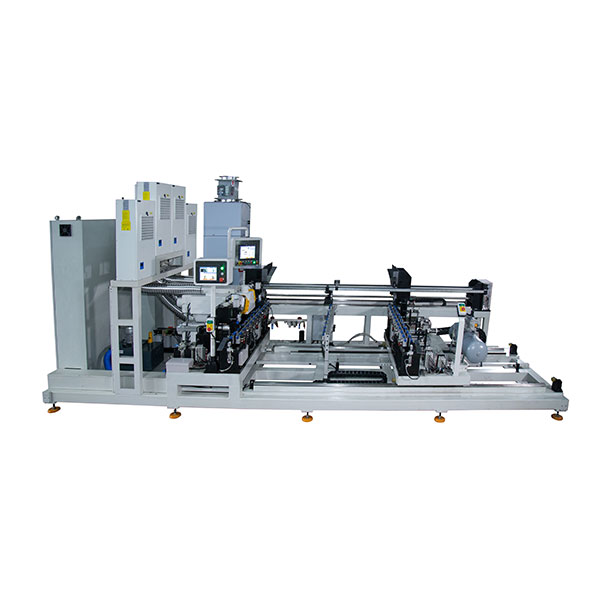

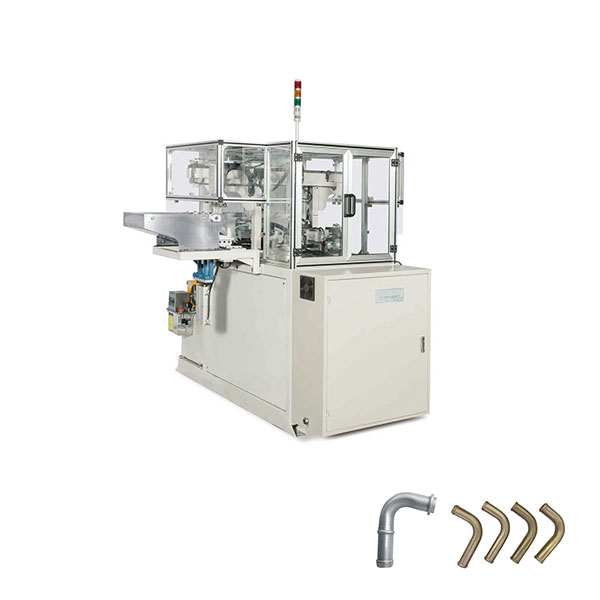

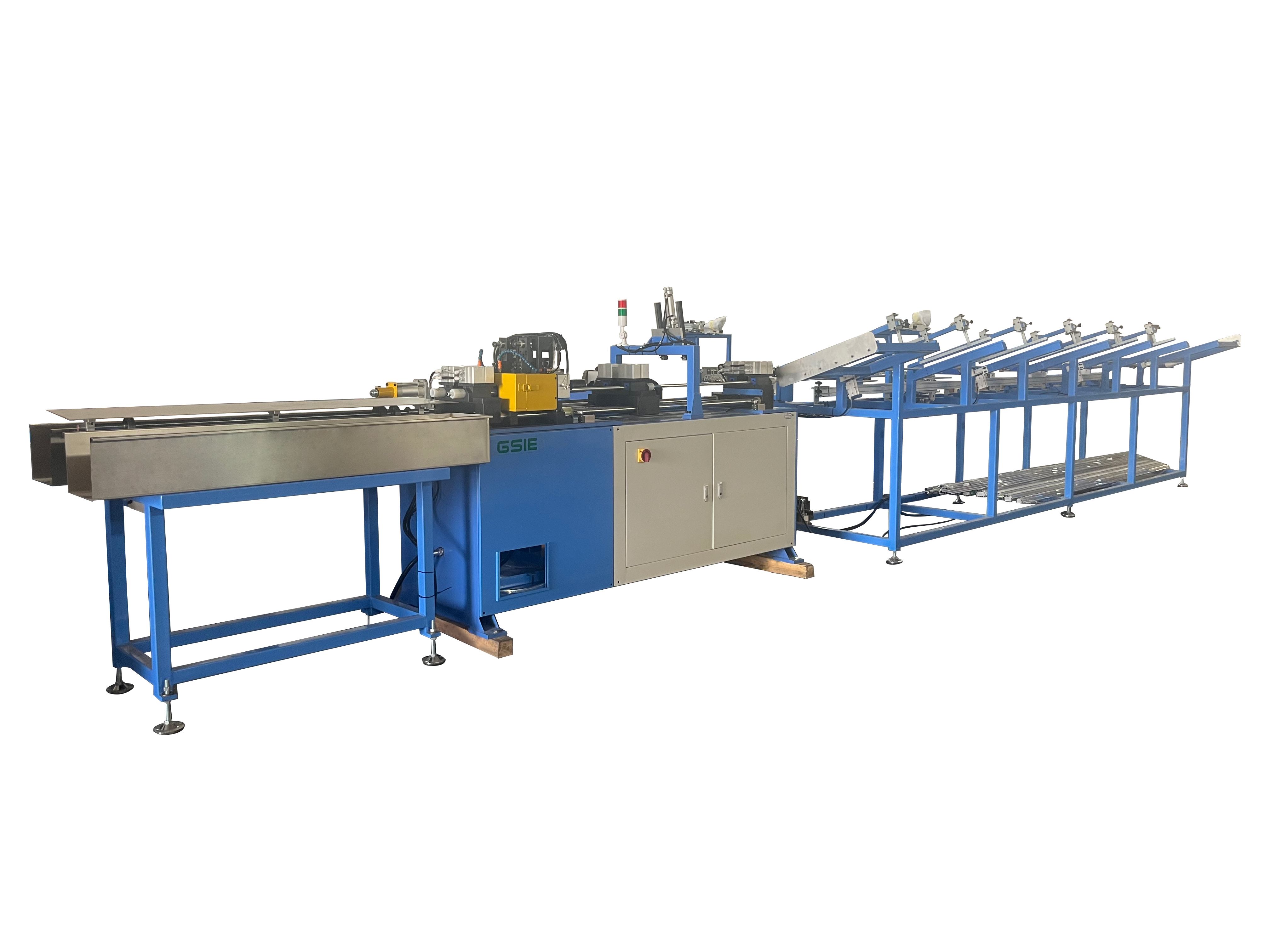

This equipment can achieve simultaneous processing of all process mechanisms after the pipe fittings are put into the hopper, enabling automated production. This reduces the number of operators and increases production efficiency.

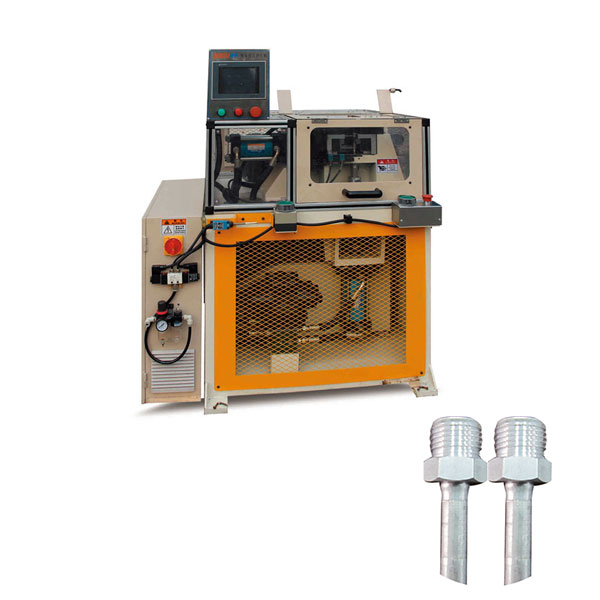

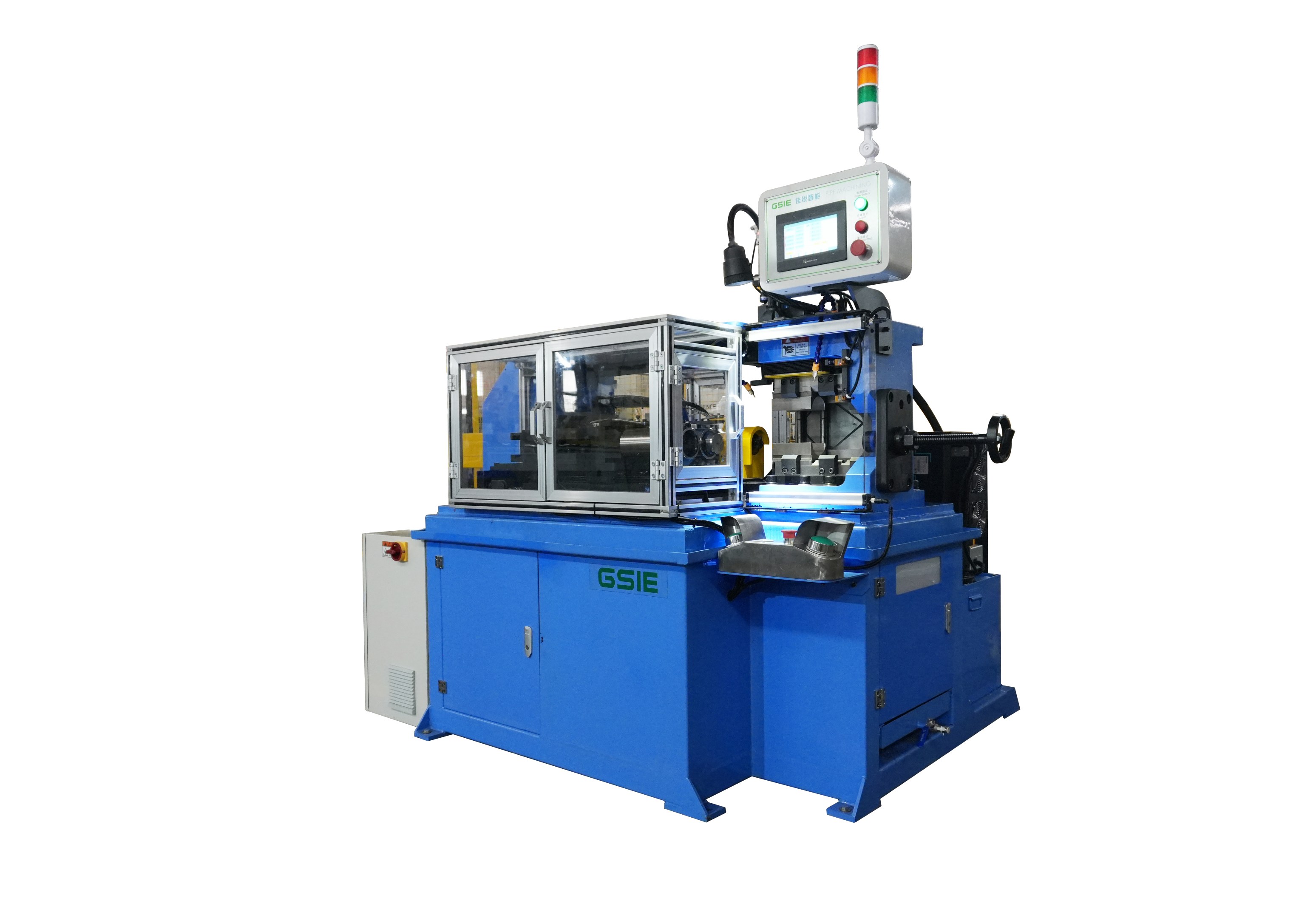

This equipment is an automated device specifically designed for the single-step clamping of pipe fittings, enabling the completion of multiple operations, including tailings removal, chamfering, and end forming.

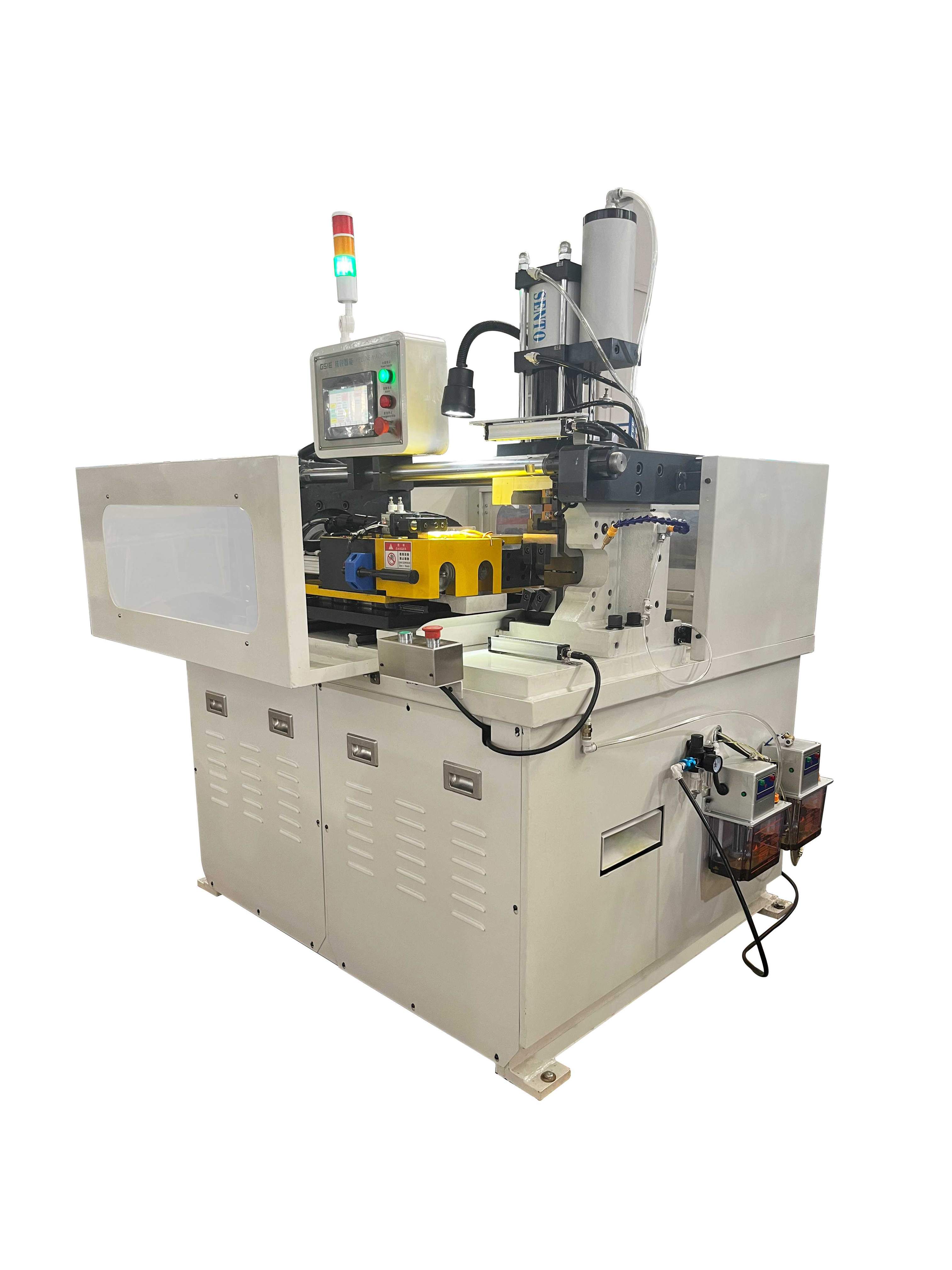

This machine is a specialized equipment for cutting chamfering and end-forming of pipes with one time clamping .
The positioning  of processing station  uses a servo motor-driven ball screw
transmission to esure the precision,  with a
single-operation  for full-cycle completion, thus enhancing production efficiency.  an ideal solution for pipe end forming.

Efficient design with 5 ram station.

Double clamp die to guarantee a good-quality forming.

Meet the complex requirements of tube end forming.

Integrated with automatic feeding and unloading system to achieve highly automatic production.

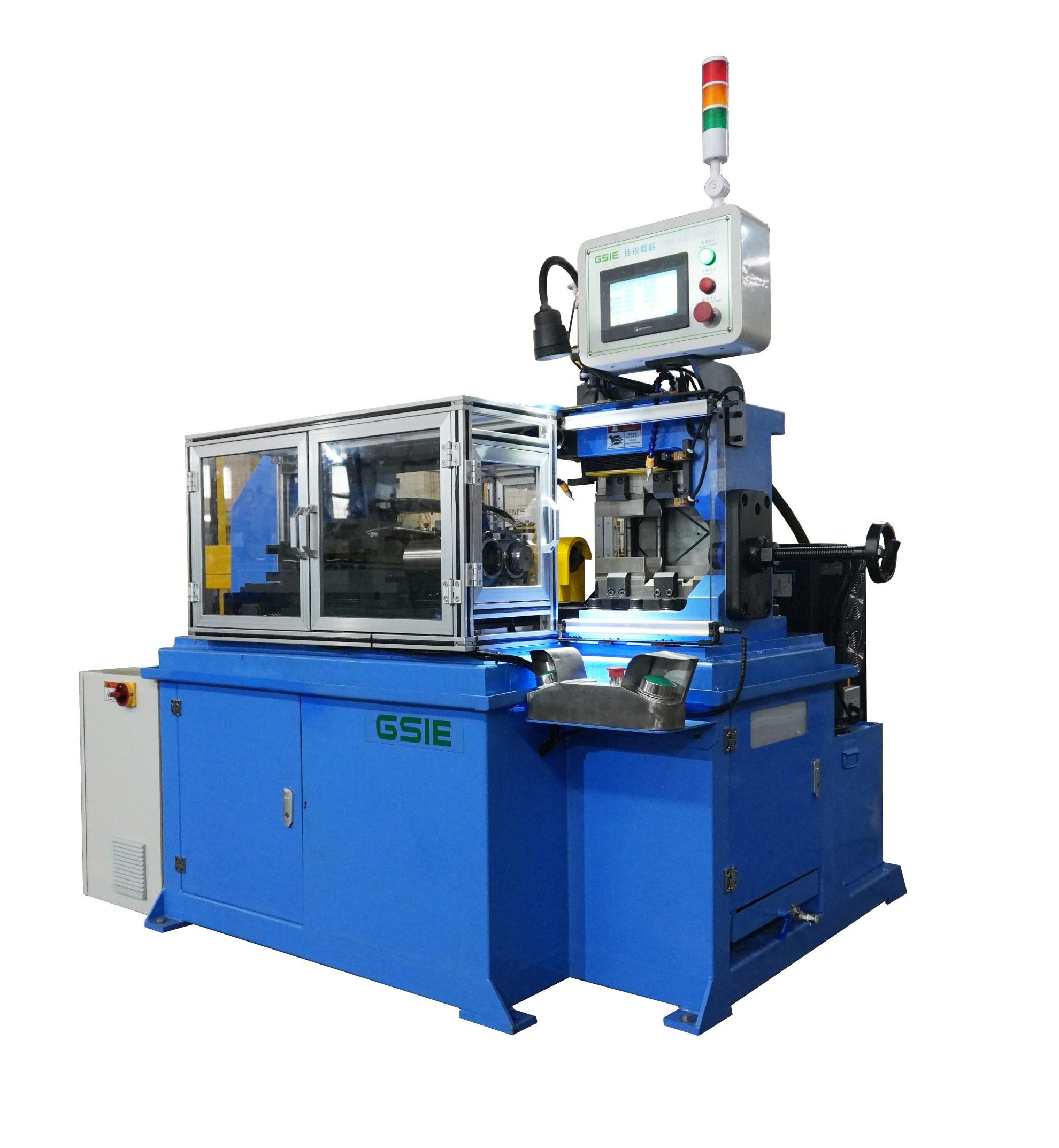

This equipment features double clamping dies and four-station forming, enabling the pipe fittings to be formed by strong extrusion at four stations.

The servo chamfering station enables complex pipe end forming and the connection of various coaxial pipe fittings.

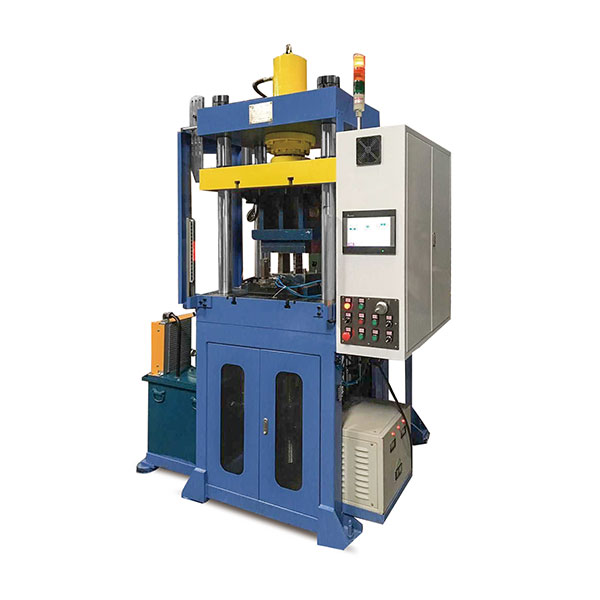

The equipment is specially for rubber hose and aluminum, steel and other metal pipe clamping equipment. The equipment uses hydraulic drive, high efficiency, strong stability.

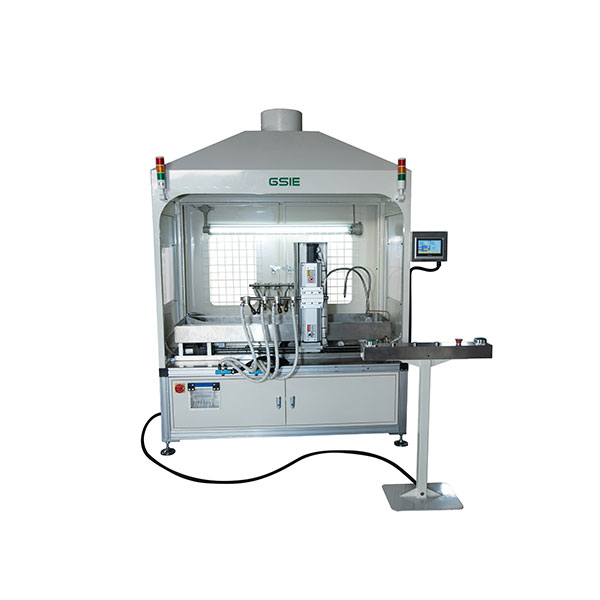

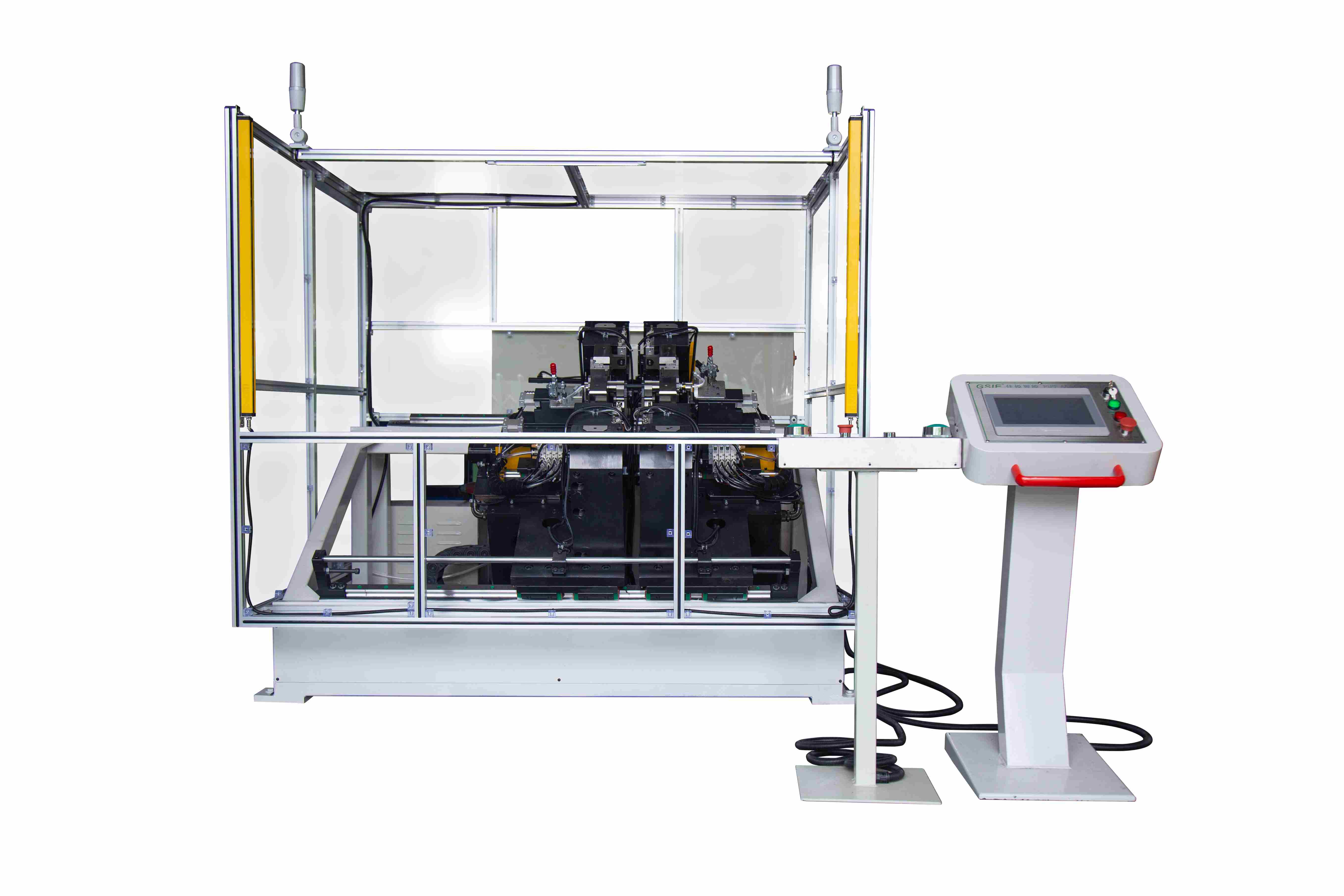

The machine is applicable to various welding of automobile and air condition pipe line.There is two welding station for eay tooling during it is welding on the other station.

The heating device with flame nozzle can be selected for swing welding to achieve a more efficient and better welding effect.

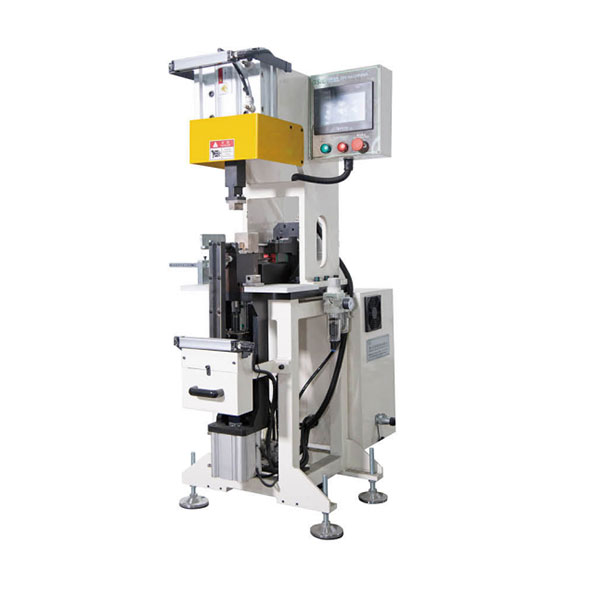

Pneumatic punching machine is mainly used for Φ 8   ~  ΦThe copper aluminum pipe with a thickness of less than 1.8mm is punched for the next welding procedure.
