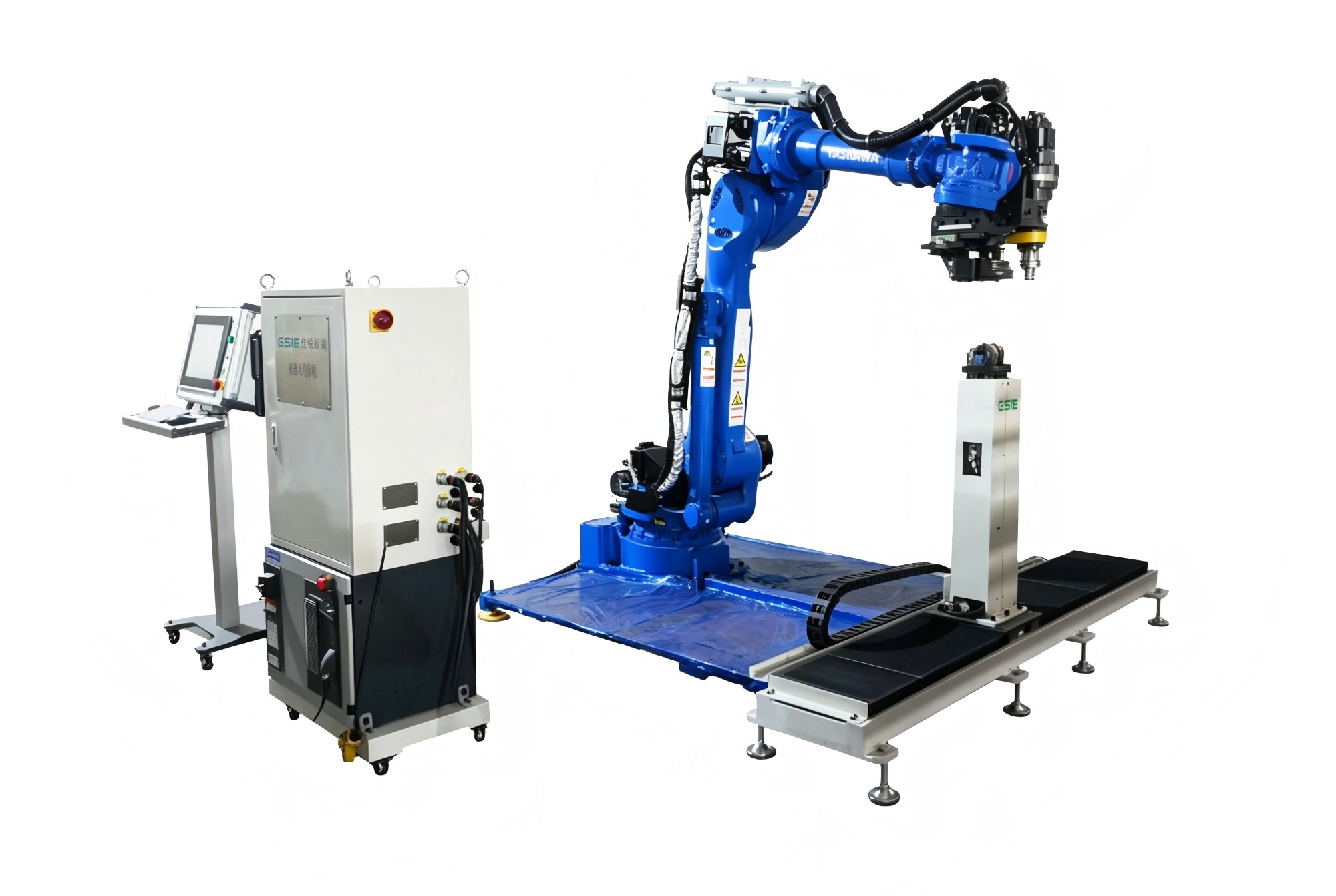

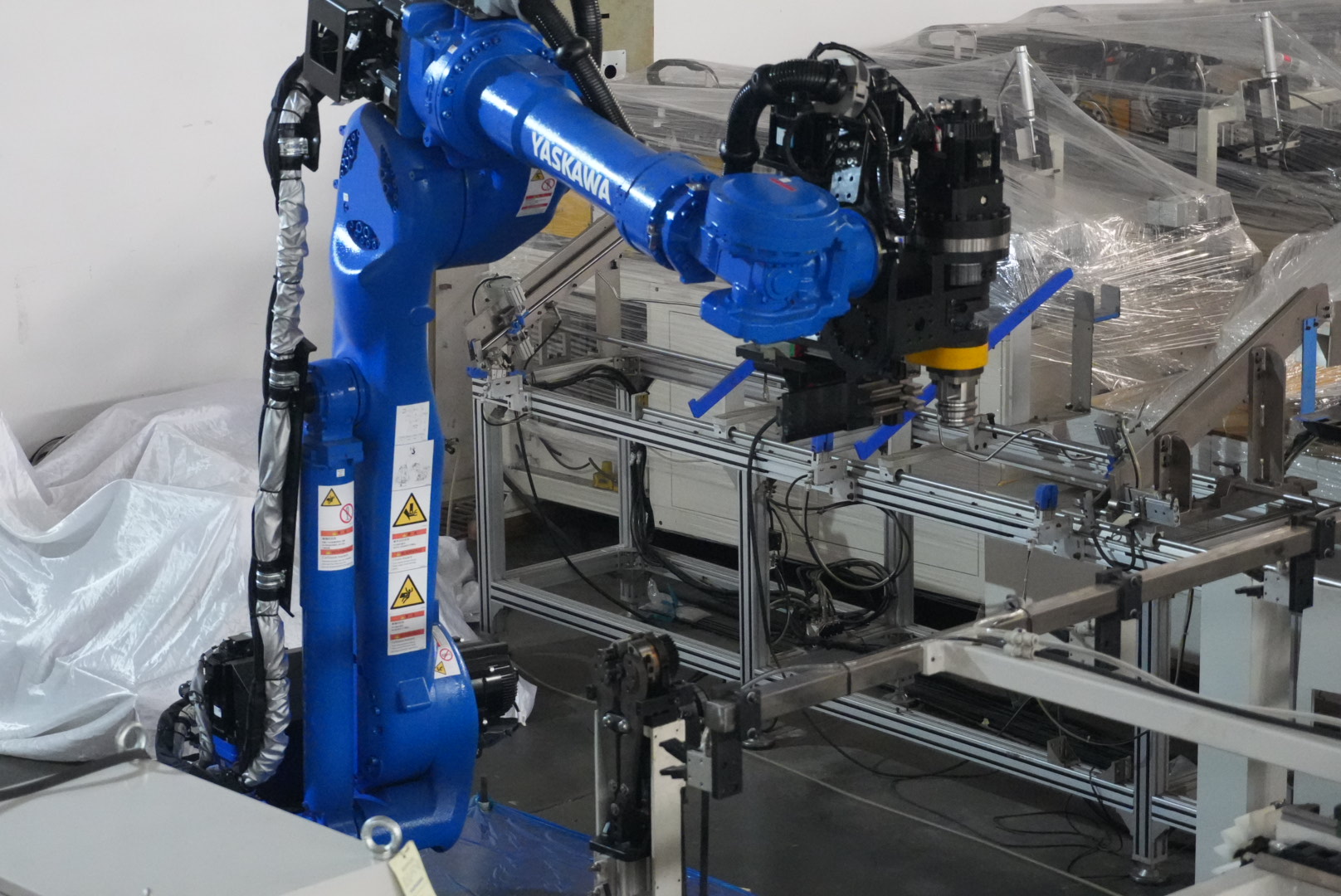

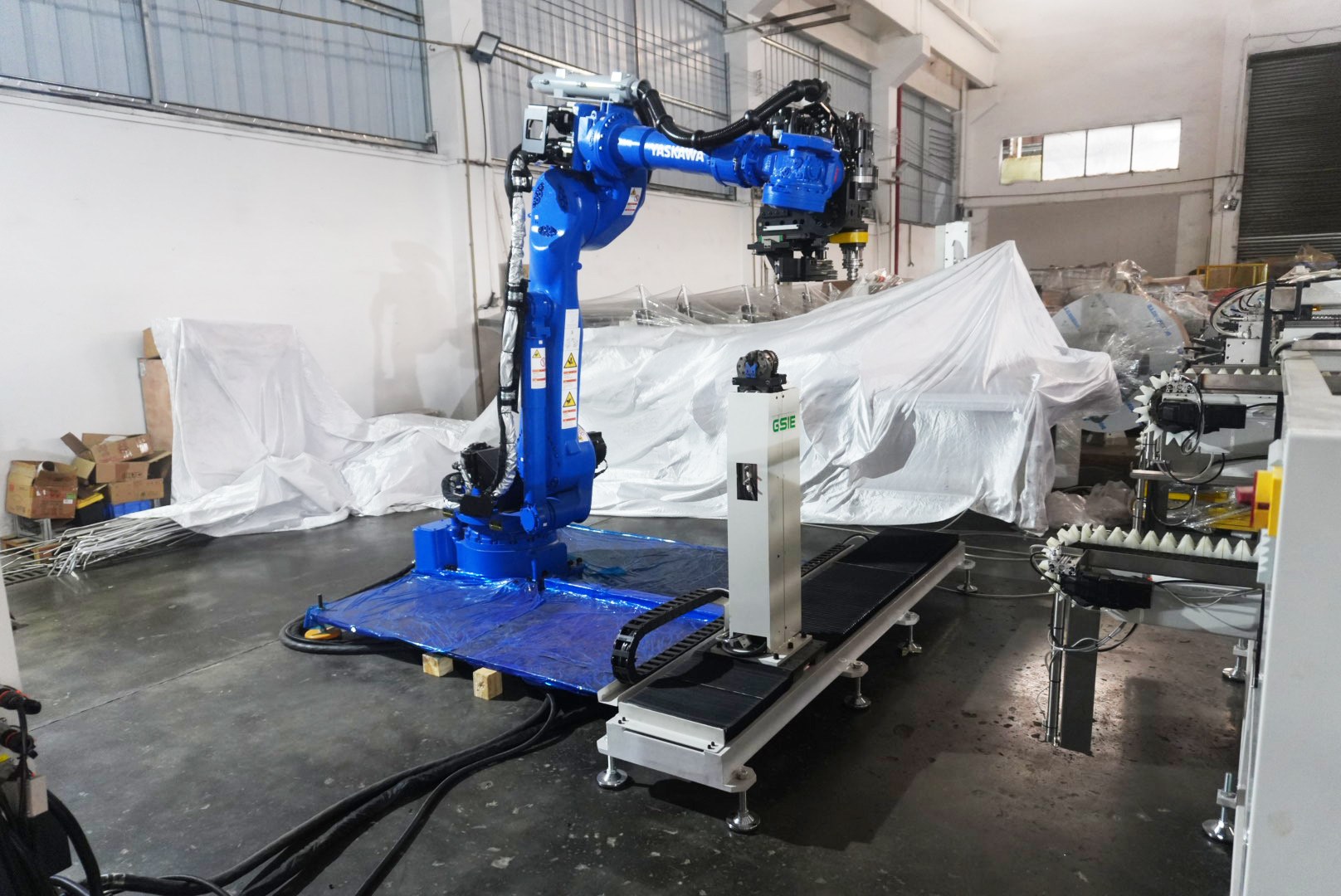

A fully automatic robotic tube bending machine for complex tube bending. Equipped with a Yaskawa GP180 6-axis robot and 12 servo axes for multi-axis motion, it handles stainless steel, carbon steel, and aluminum tubes from Ø4×0.5mm to Ø25×2mm, up to 3500mm long. Integrated loading, handling, bending, supplementary bending, and unloading. Bending accuracy ±0.1°, approx. 4–5s per bend, changeover ≤20 min. Supports 3D drawing and YBC data import with one-click program generation—stable, efficient, ideal for batch processing of complex tubes.
| Model | R-Bend25-S-3500 |
| Material | Stainless Steel / Carbon Steel / Aluminum Tube |
| Tube Diameter Range |
Stainless Steel：Ø4×0.5 ~ Ø16×2 mm Carbon Steel： Ø4×0.5 ~ Ø25×1 mm Aluminum Tube：Ø4×0.5 ~ Ø25×2 mm |
| Max. Tube Length | 3500 mm |
| Min. Tube Length | 300 mm |
| Max. Bending Radius | R50 mm（ Standard die 2× tube diameter） |

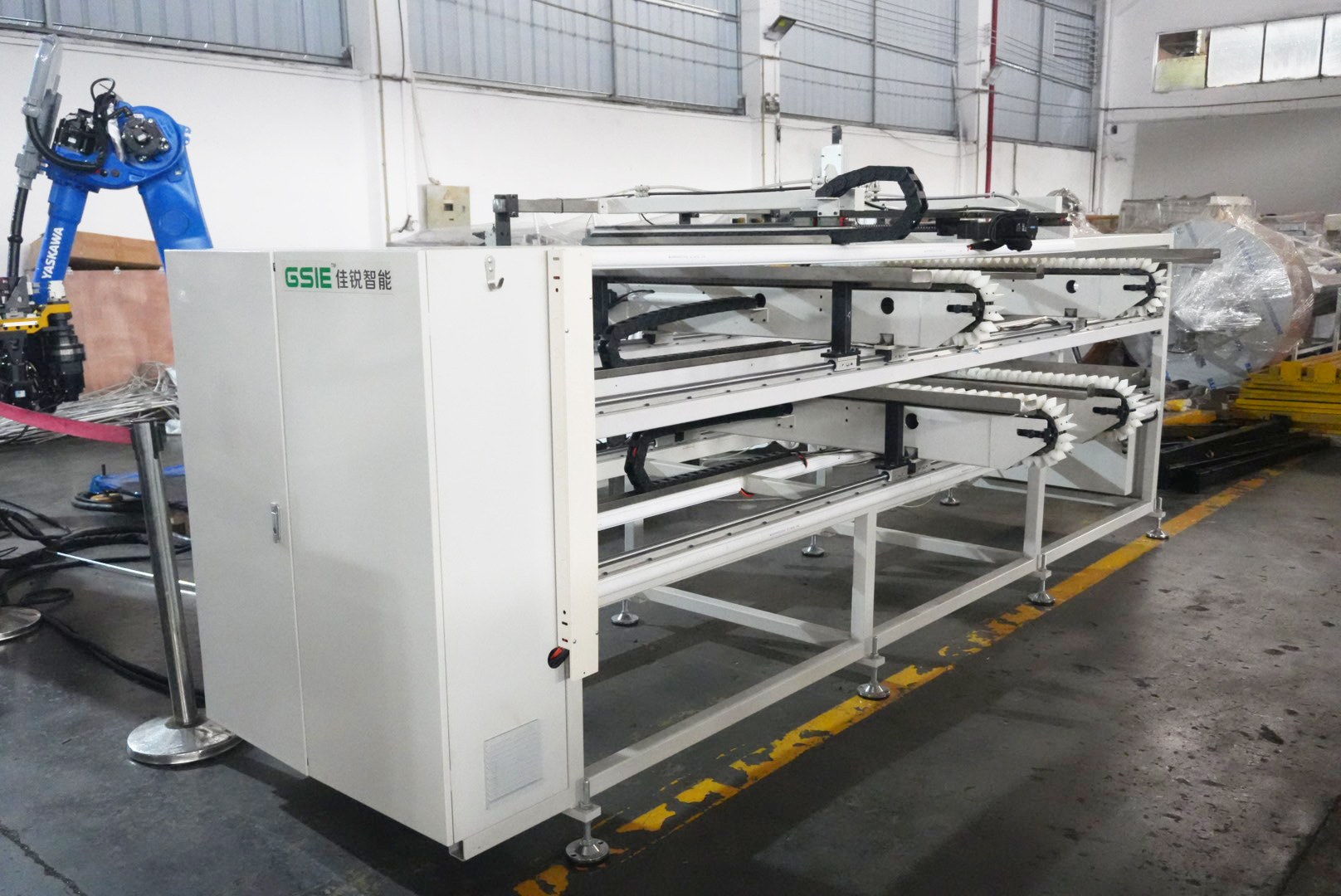

| Max. Auto Loading Rack Capacity per Load | 40 pcs |
| Machine Dimensions (L×W×H) | ≈5000 mm × 3000 mm × 2300 mm |
