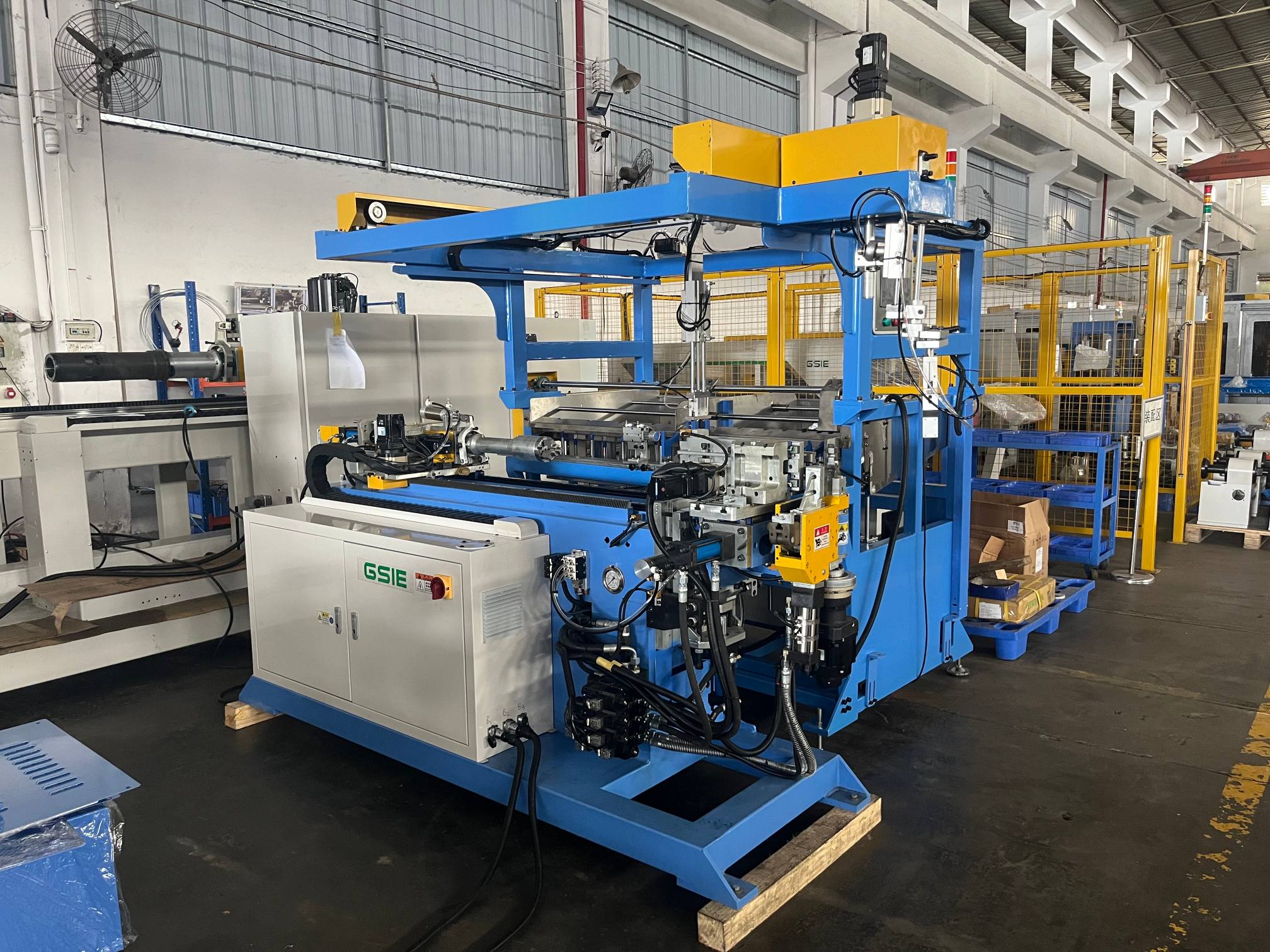

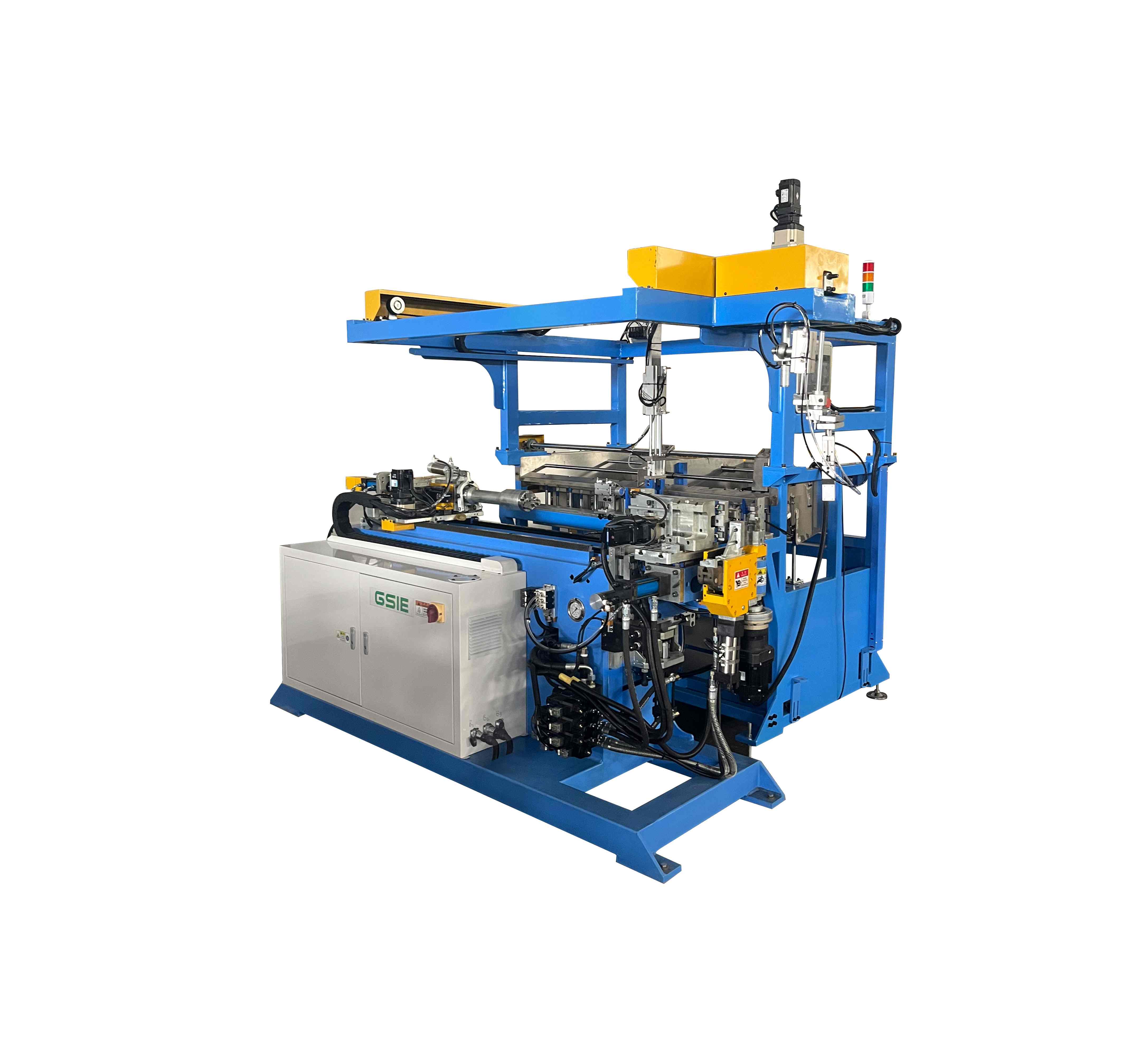

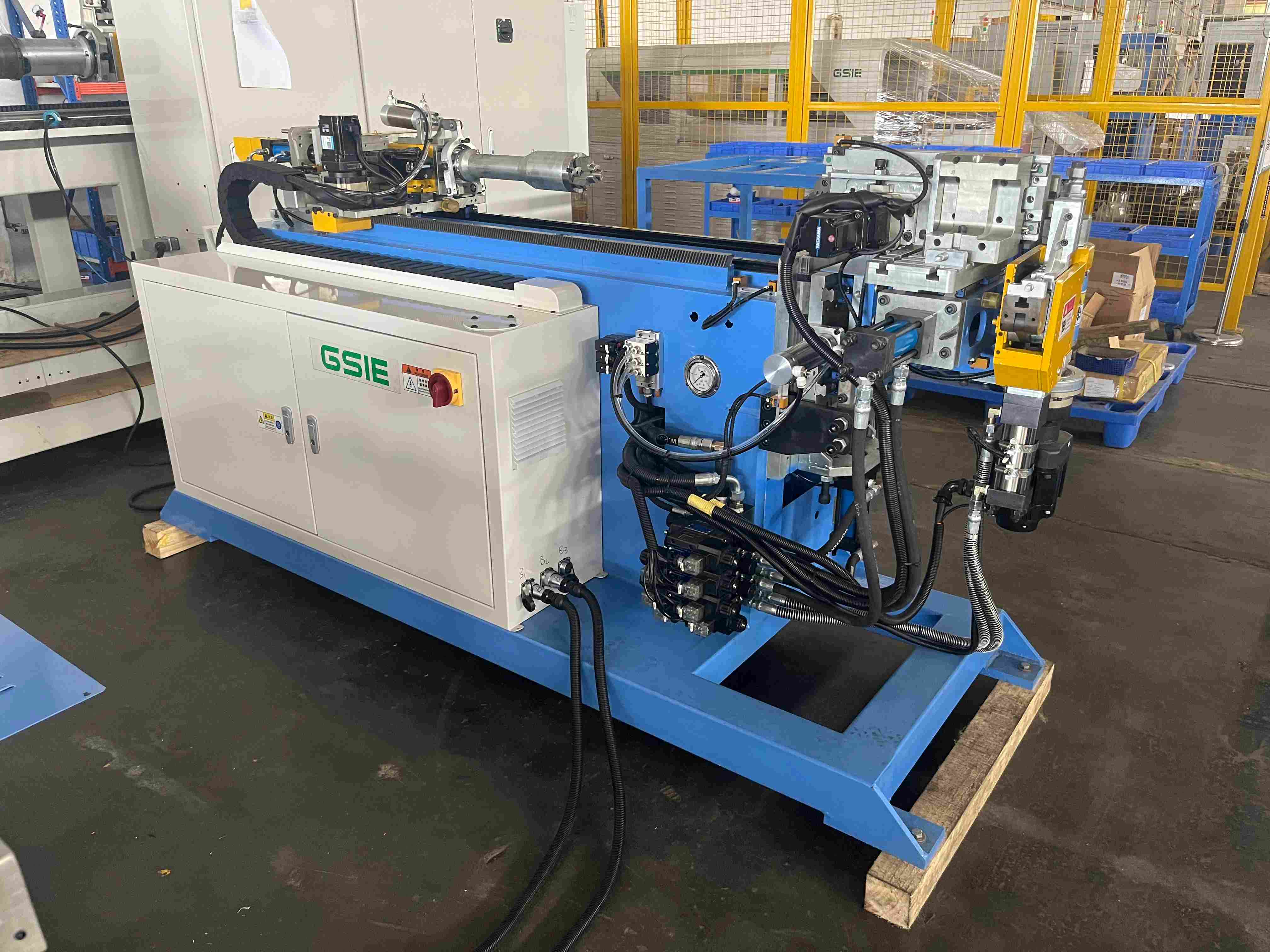

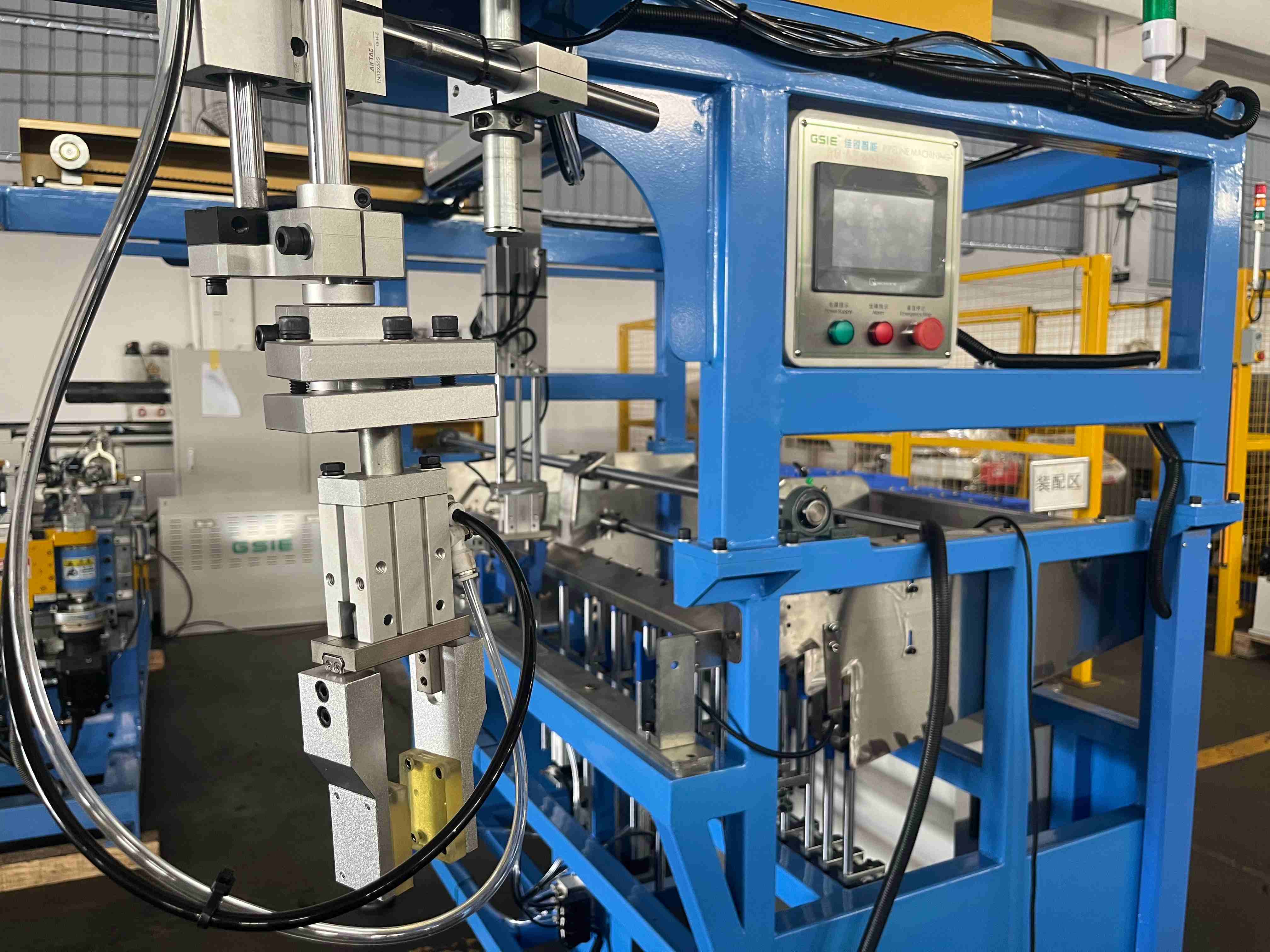

The machine is equipped with a microcomputer control system and integrates four servo drive systems (Y, B, C axes and guide die assisted pushing), enabling complex processing functions such as four-axis simultaneous motion, active bending, through-feed bending, and rear-pull feeding. It comes with a front-push loading mechanism and a 1-axis servo unloading manipulator, realizing automatic tube loading and unloading to effectively reduce manual labor dependence.
|
型号 Model |
SKW19-R2-R-1500 |
| 加工管径 Tube Diameter | φ5 – φ19 mm |
| 加工壁厚 Wall Thickness | 1.0 – 1.8 mm (Copper / Aluminum) |
| 弯曲半径 Bending Radius | R10 – R50 mm |
| 加工长度 Processing Length | 80 – 1500 mm |
| 弯管效率 Bending cycle time | 3 – 4.5 sec / bend (adjustable) |
| 最大送料速度 Max. feeding speed | 1000 mm/s |
| 最大弯曲速度 Max. bending speed | 360°/s |
| 最大旋转速度 Max. rotation speed | 720°/s |
