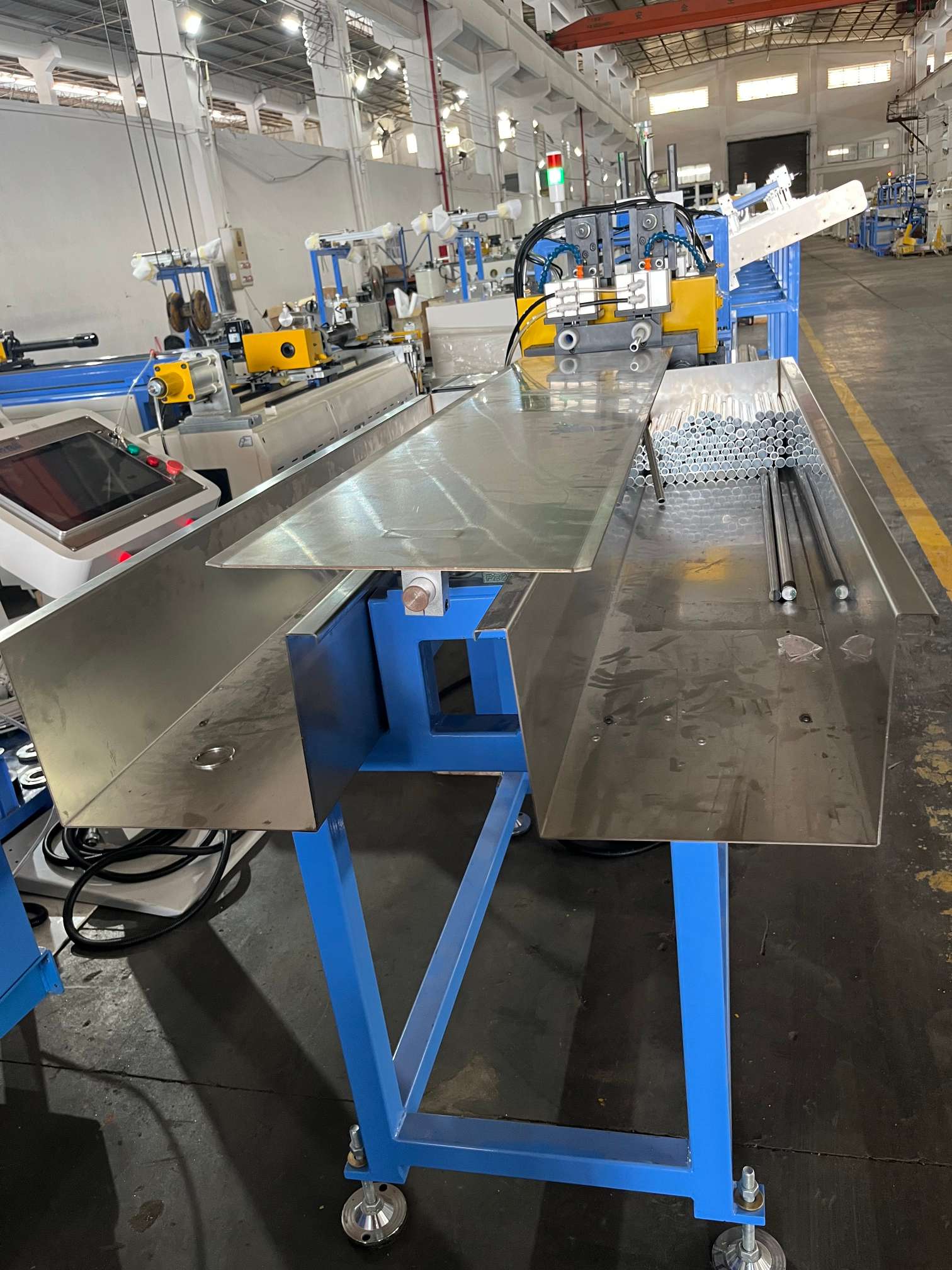

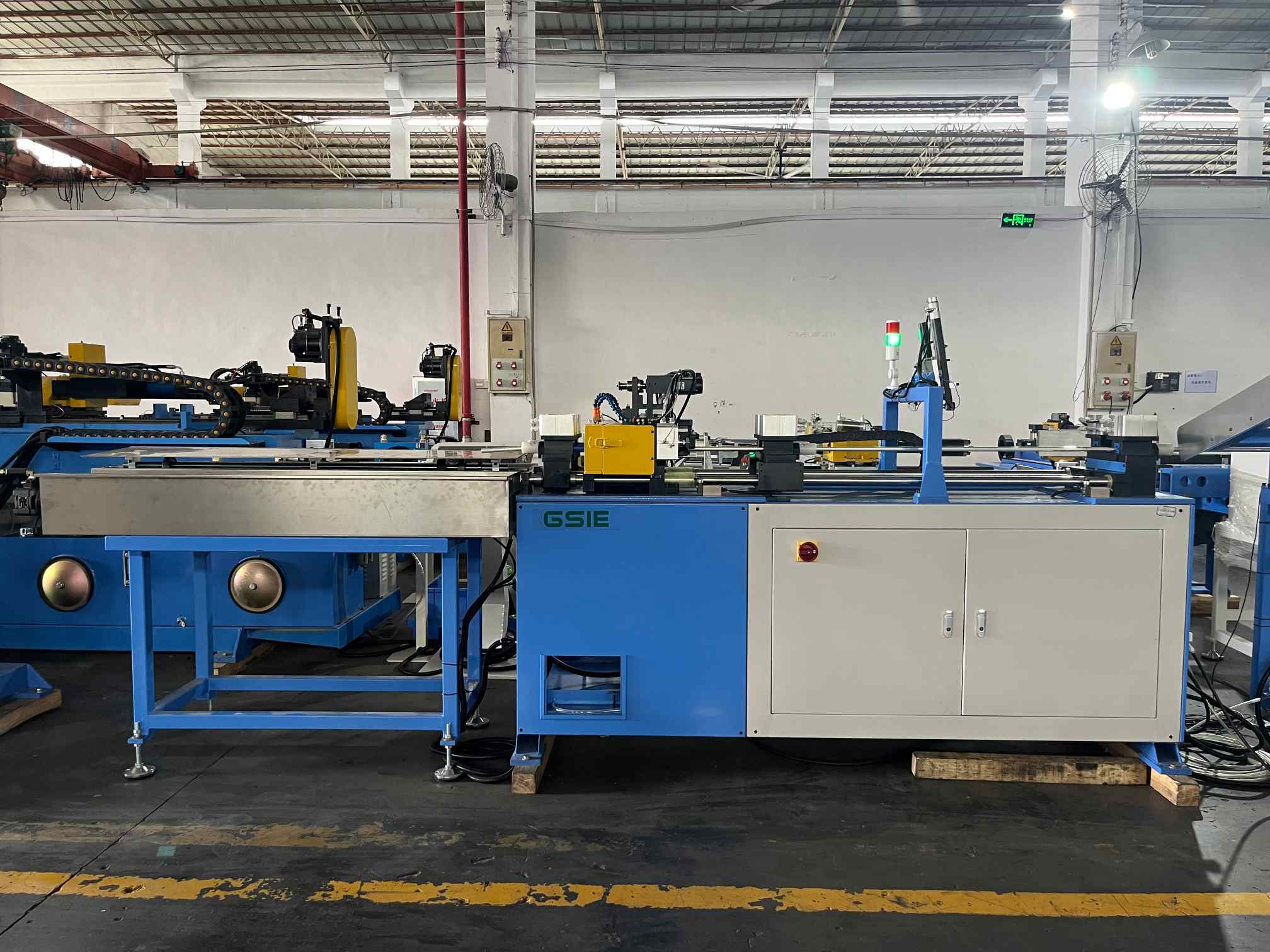

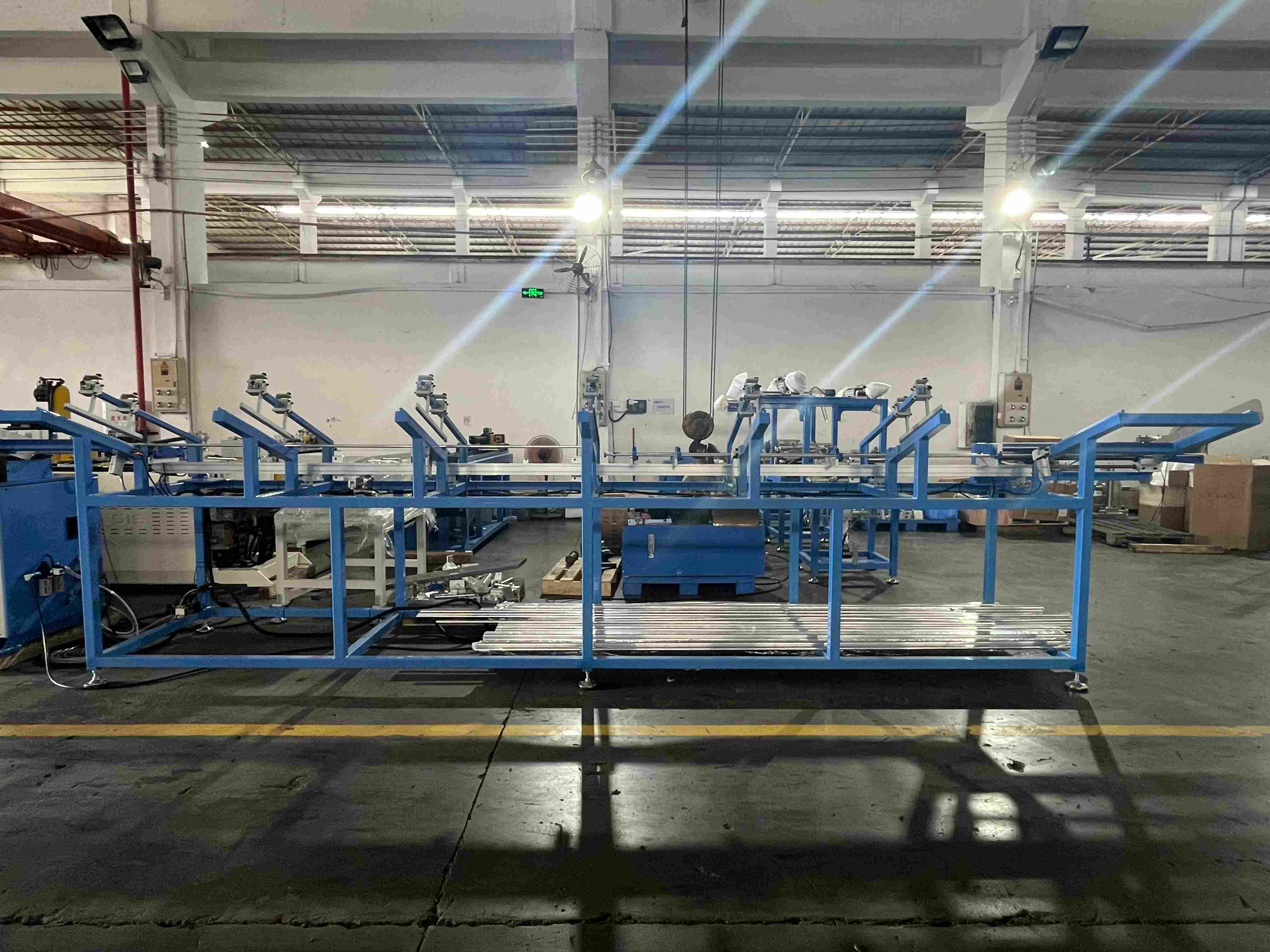

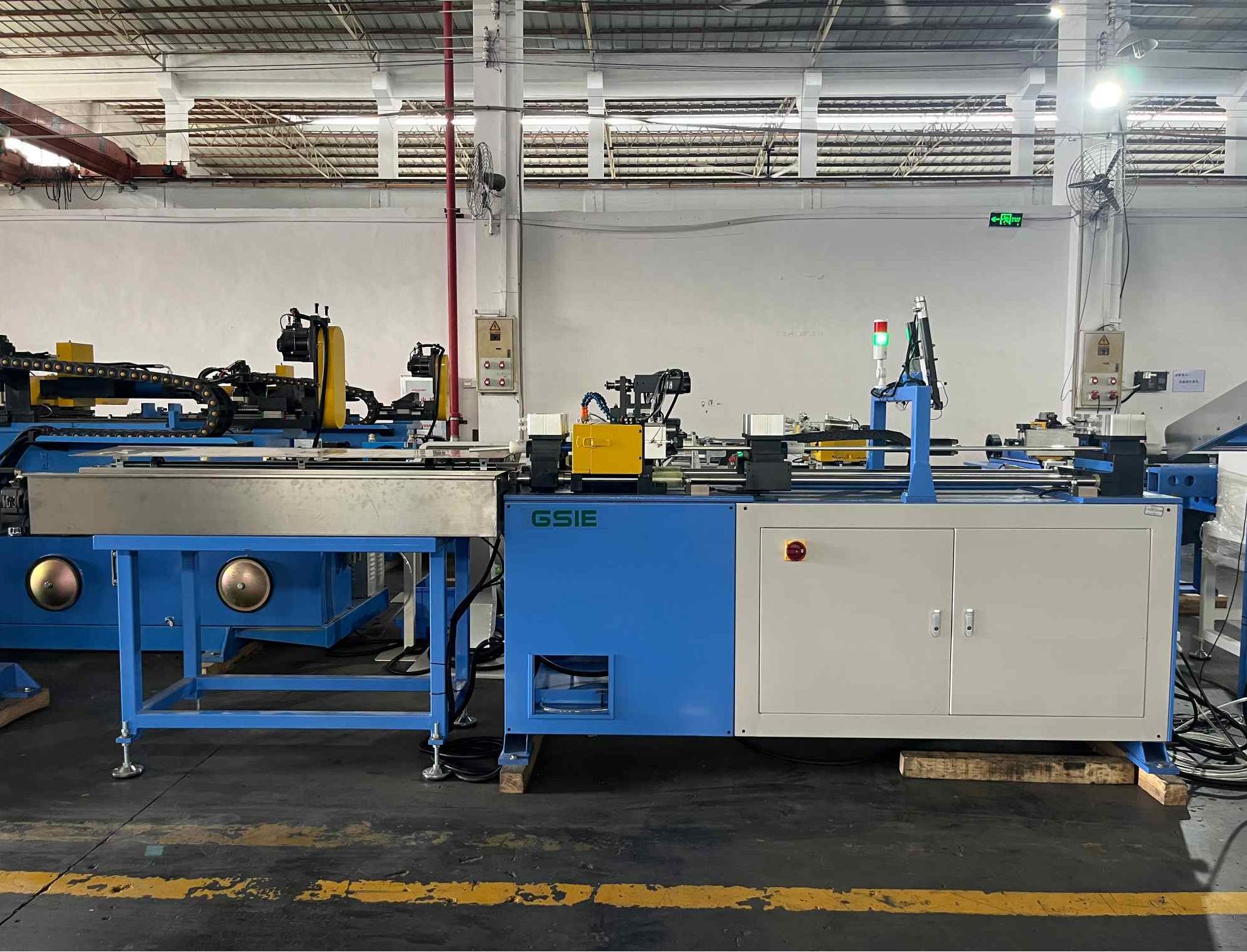

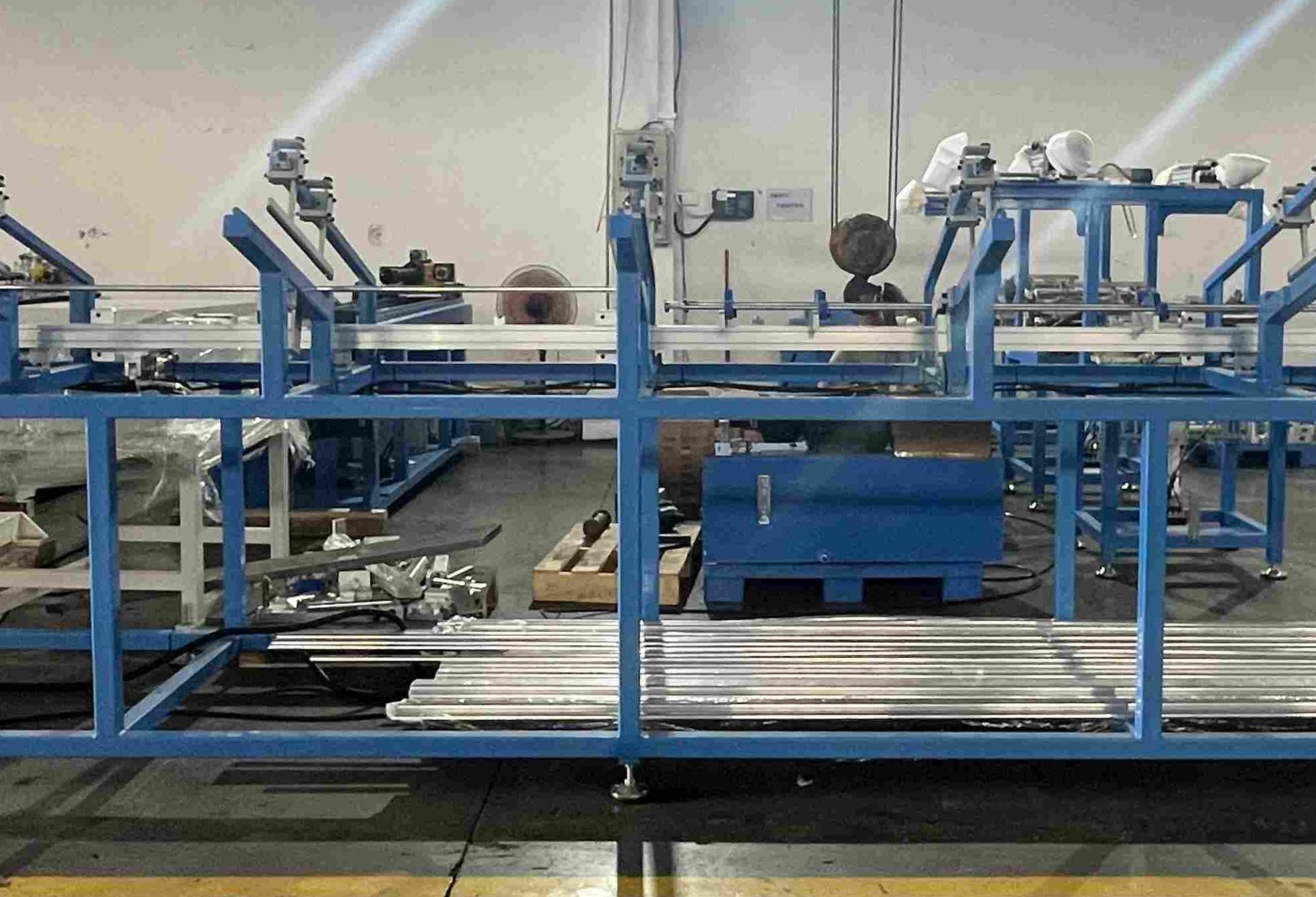

This machine features an elegant appearance, rational structure, easy size changeover, stable operation, low tube shrinkage rate, and high efficiency. It automatically performs loading/unloading, fixed-length feeding, chipless cutting, pre-stretching, breaking, and material collection, achieving fully automatic cut-to-length processing except for manual tube loading.
|
型号 Model |
KDWS-20 |
|
材质Material |
Aluminum tube, Steel tube |
| 管子外径和壁厚 Tube O.D. & Wall Thickness | Φ12 – Φ20 × 1.75 |
| 上料长度范围 Loading Length Range | 600 mm – 6000 mm |
| 一次开料根数 Number of Tubes per Batch | 2 pieces |
| 一次送料行程 Single Feeding Stroke | 1000mm |
| 切割长度Cutting Length | 43 – 1500 mm |
