型号 Model |
KDW-216*2+2 |
|
材质Material |
铝管Aluminum tube (6063-T4) |
| 管子外径和壁厚 Tube O.D. & Wall Thickness | φ6 – φ19 |
| 一次开料根数 Number of Tubes per Batch | φ9×1.5, φ9.5×1.5, φ12×1.5, φ16×1.75 |
| 一次送料行程 Single Feeding Stroke | 1000mm |

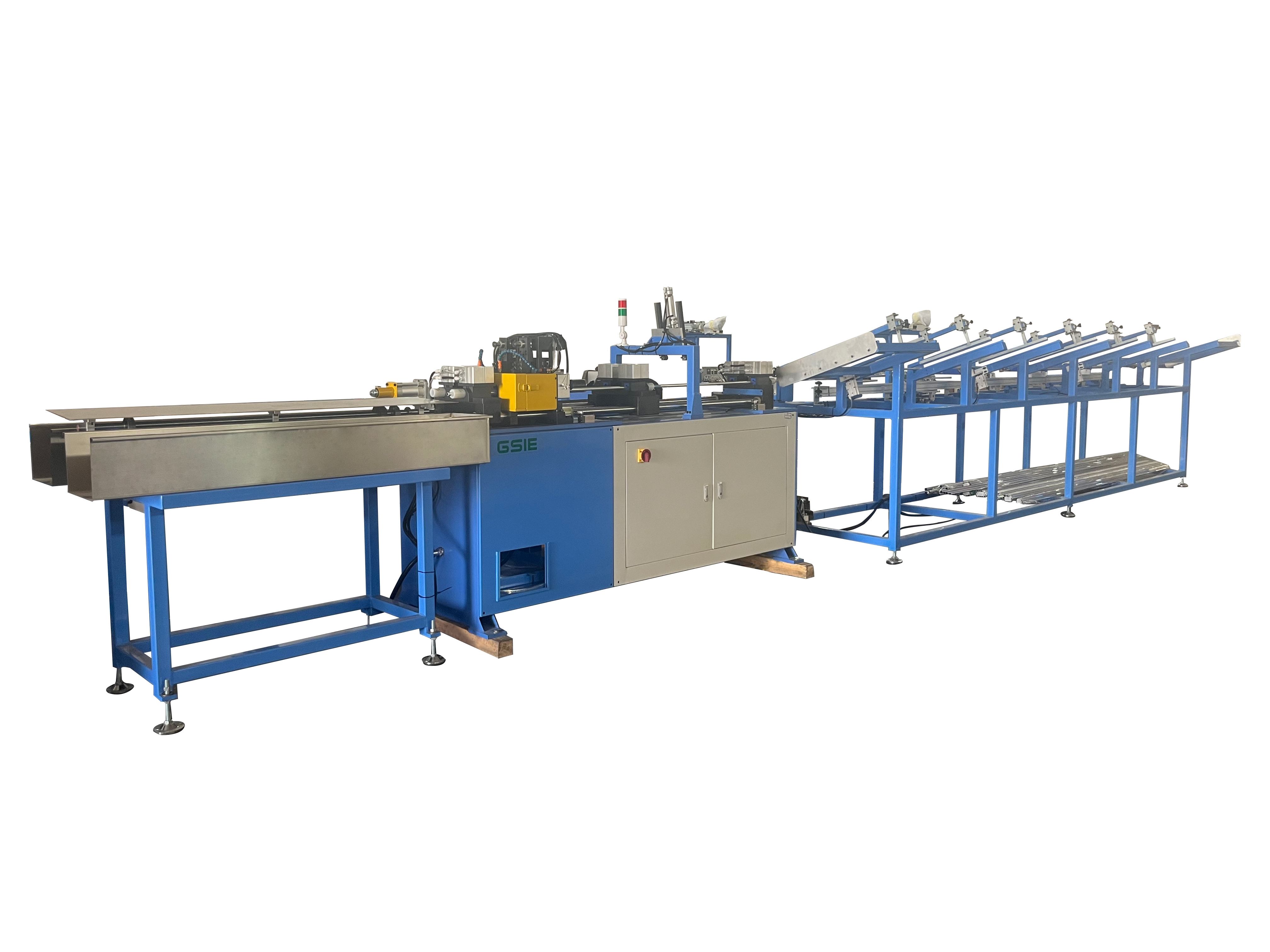

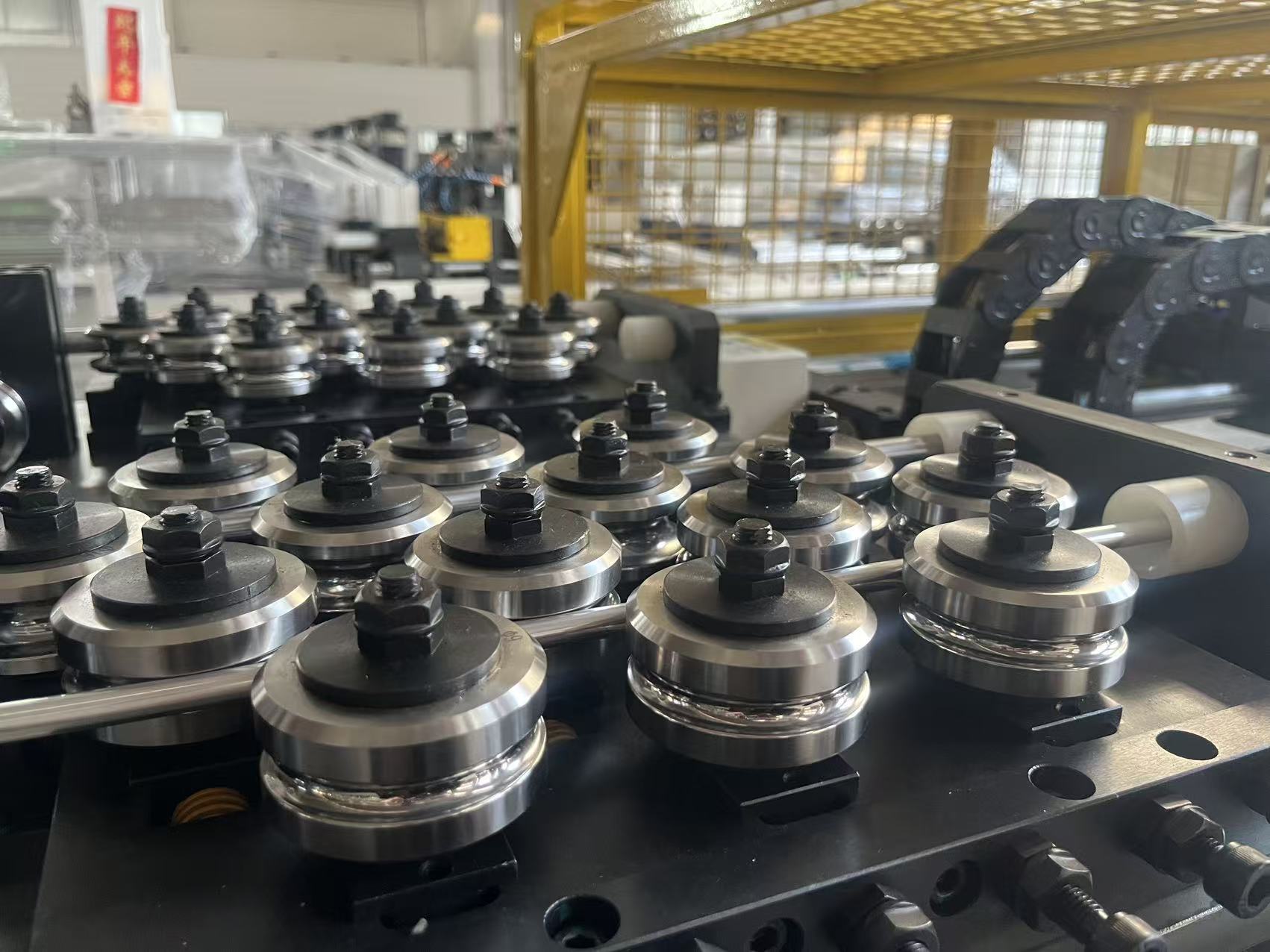

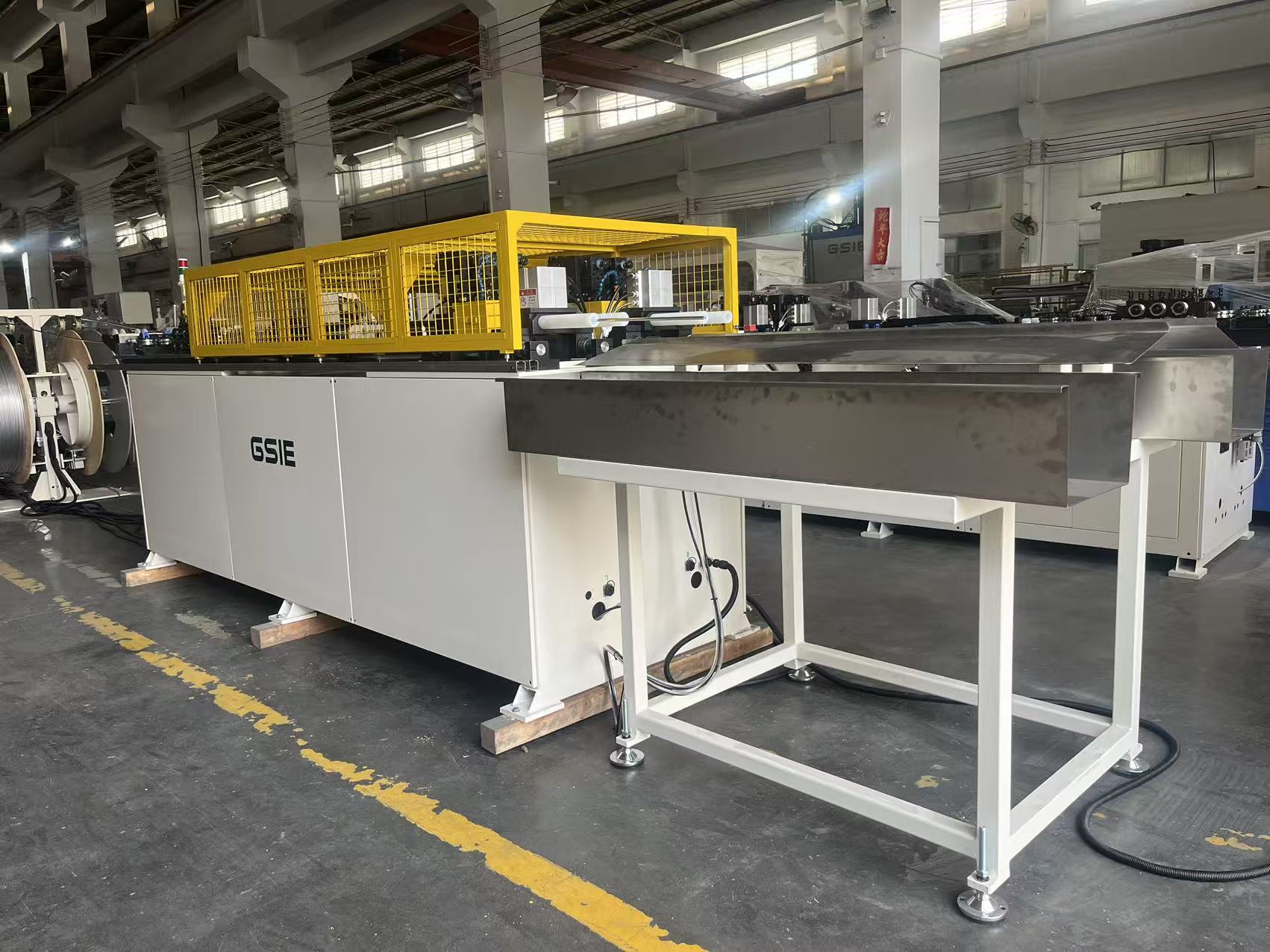

This machine features an elegant appearance, rational structure, easy size changeover, stable operation, low tube shrinkage rate, and high efficiency. It can automatically perform unwinding, roundness correction & straightening, fixed-length feeding, chipless cutting, pre-stretching, breaking, and material collection on four coils of tube, achieving fully automatic cut-to-length processing except for manual loading and initial threading.
|
型号 Model |
KDW-216*2+2 |
|
材质Material |
铝管Aluminum tube (6063-T4) |
| 管子外径和壁厚 Tube O.D. & Wall Thickness | φ6 – φ19 |
| 一次开料根数 Number of Tubes per Batch | φ9×1.5, φ9.5×1.5, φ12×1.5, φ16×1.75 |
| 一次送料行程 Single Feeding Stroke | 1000mm |
