Tube End Forming Machine
banner_

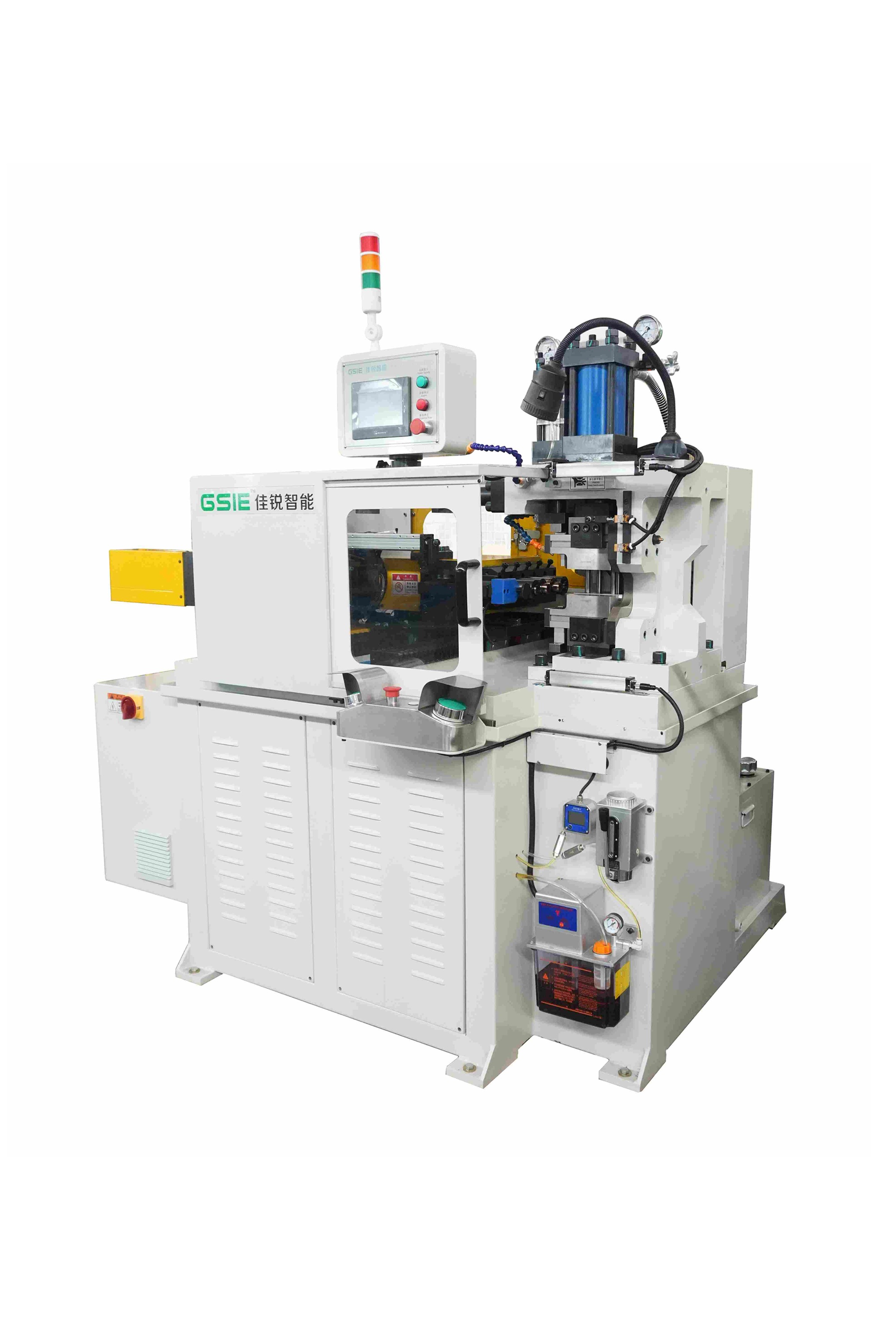

DSC05814 (2)(1)

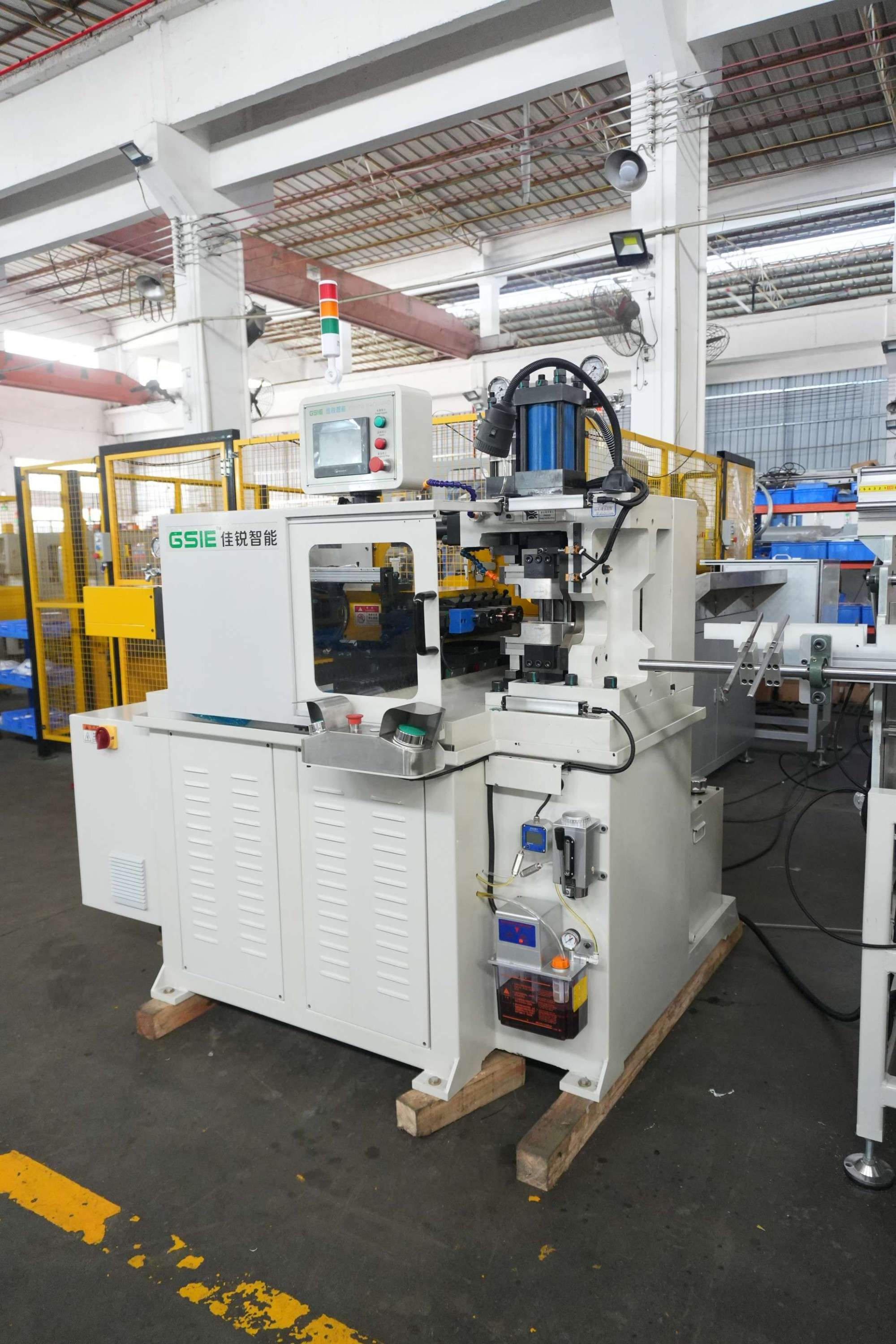

DSC05815

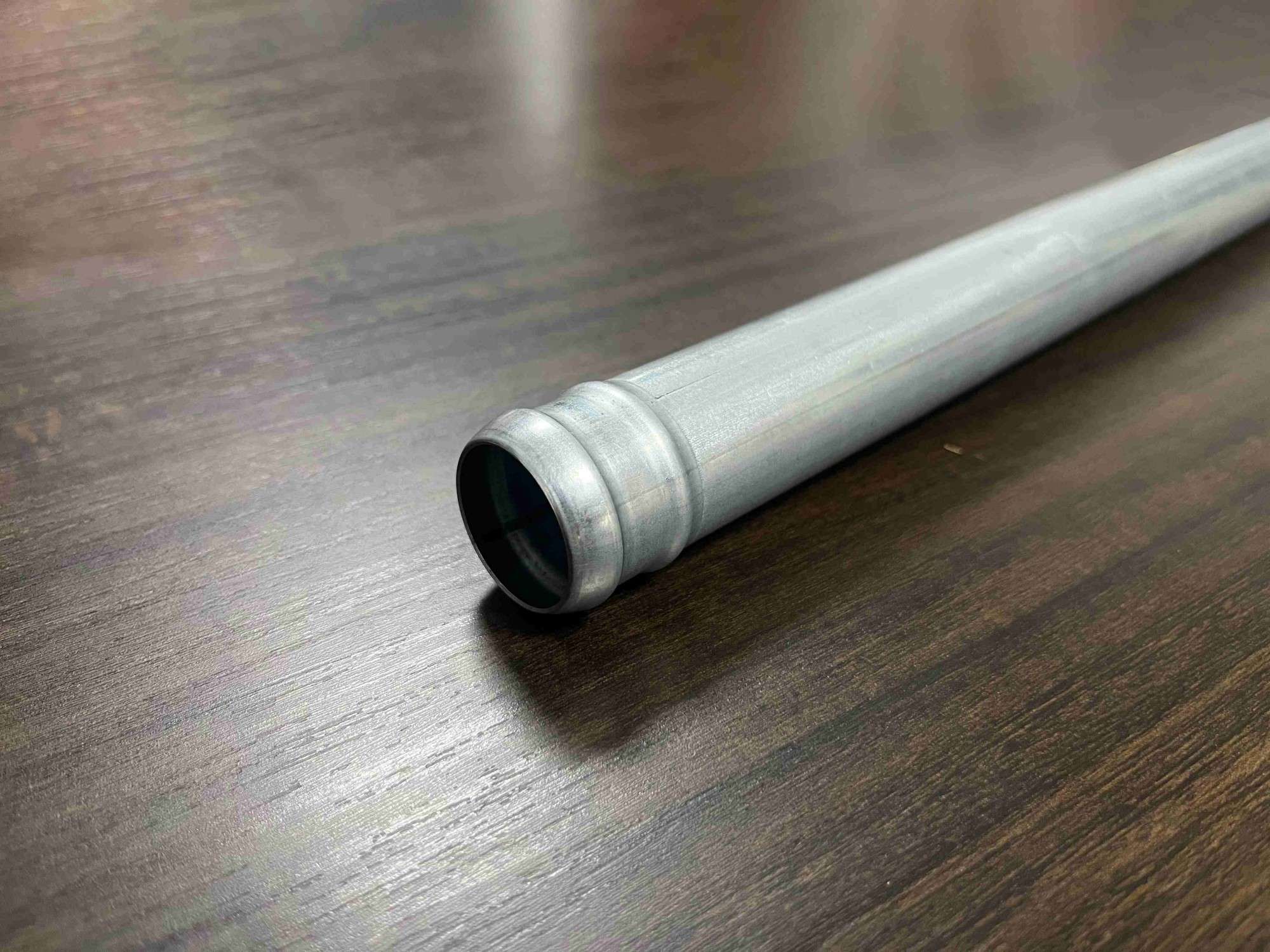

6fc14fcda73069c08e5285c3db55ae7b

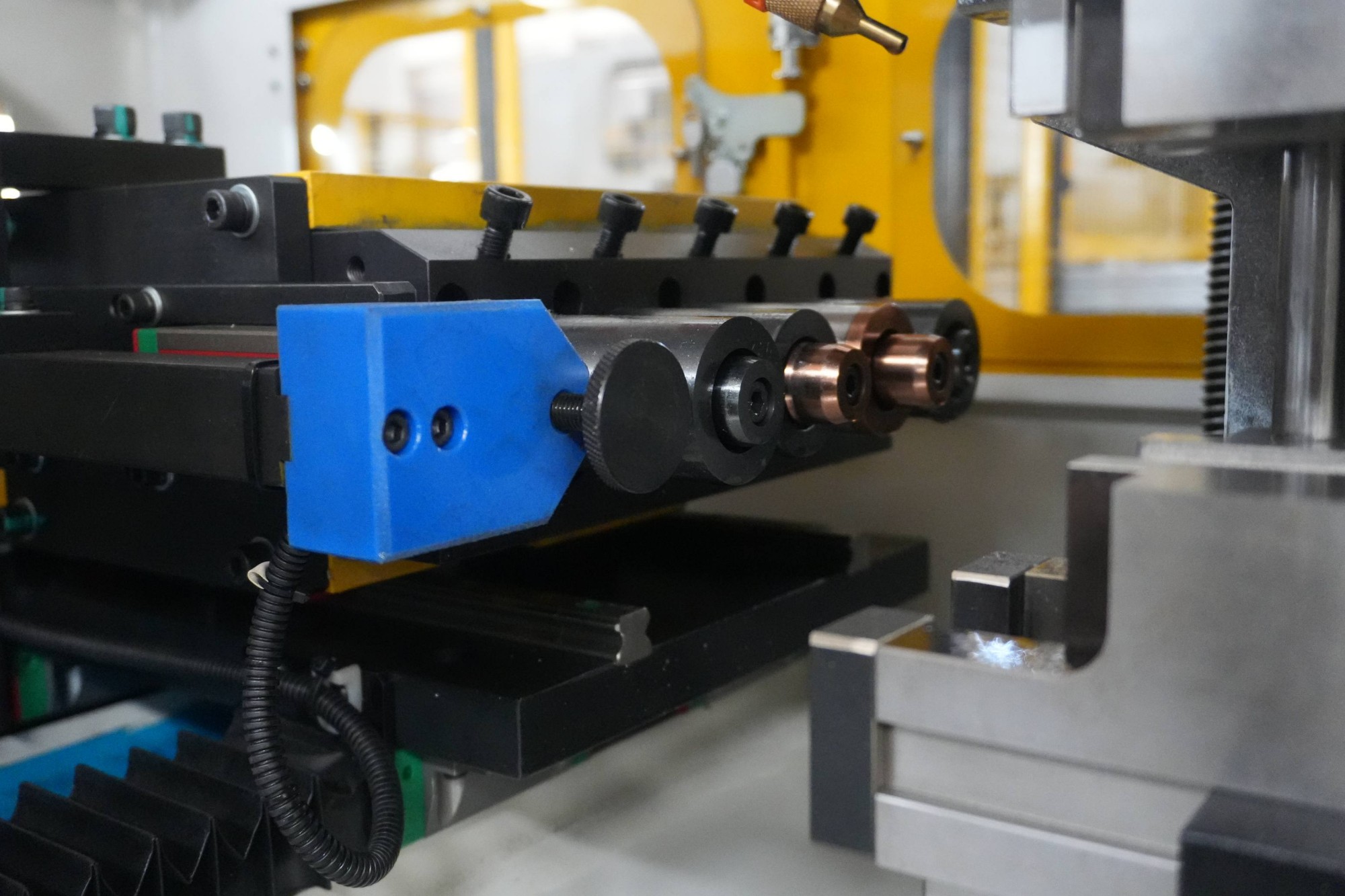

DSC05806

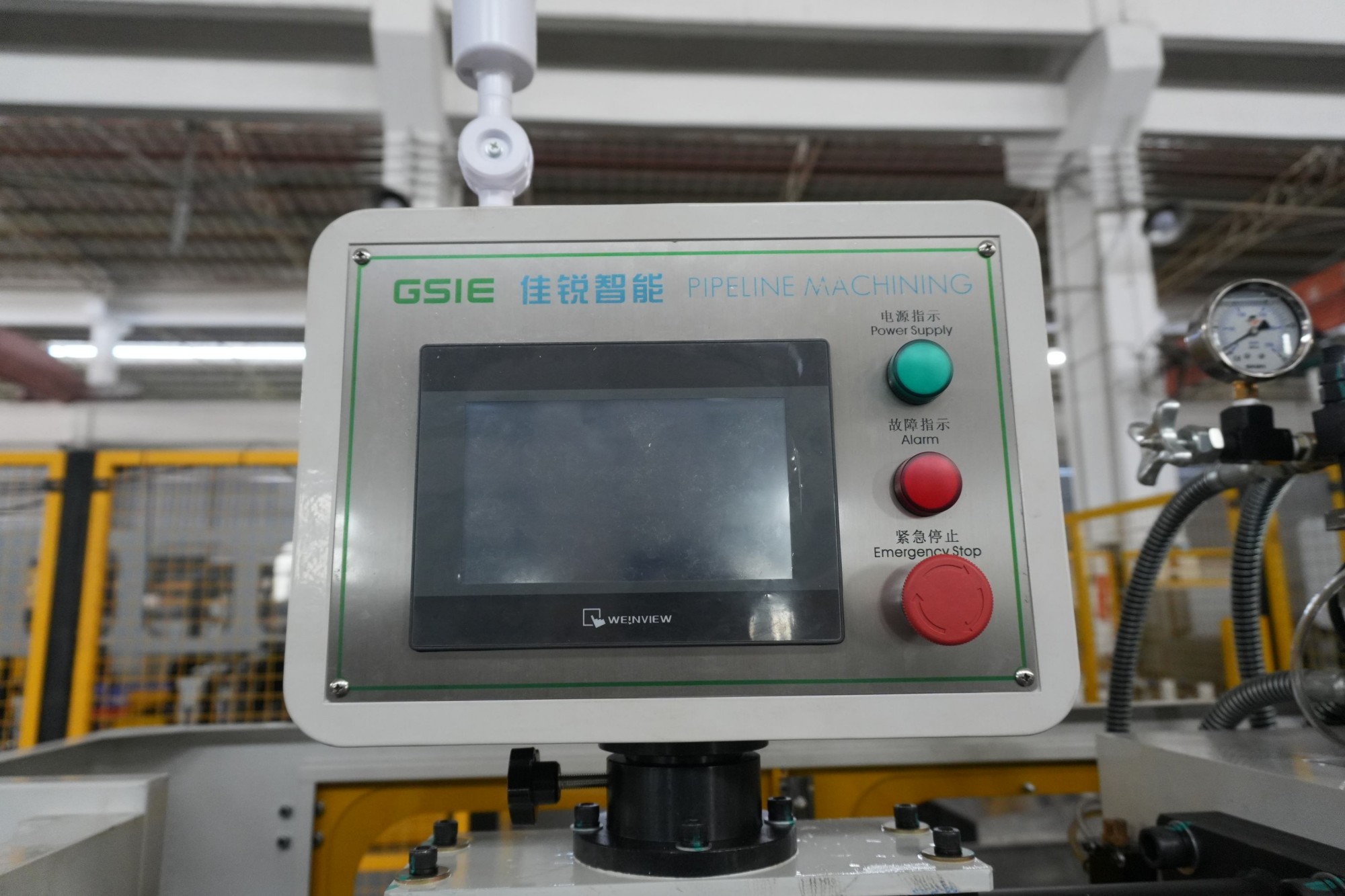

DSC05810

FMD-D30-5P

Efficient design with 5 ram station.

Double clamp die to guarantee a good-quality forming.

Meet the complex requirements of tube end forming.

Integrated with automatic feeding and unloading system to achieve highly automatic production.

型号  Model

FMD-D30-5P
材质 Material 碳钢、铝合金 Carbon steel, Aluminum alloy
管径 Tube OD

碳钢Carbon steel：Ф8mm~Ф16mm   铝合金Aluminum alloy：Ф8mm~Ф20mm
壁厚 Wall Thickness 碳钢Carbon steel：0.5mm~1.0mm      铝合金Aluminum alloy：1.0mm~1.75mm

冲头推力 Punch Force

 12T
冲头工位 Forming stations 5
尺寸（L*W*H） ≈5800 × 1250 × 1800 mm
