Efficient design with 5 ram station.
Double clamp die to guarantee a good-quality forming.
Meet the complex requirements of tube end forming.
Integrated with automatic feeding and unloading system to achieve highly automatic production.

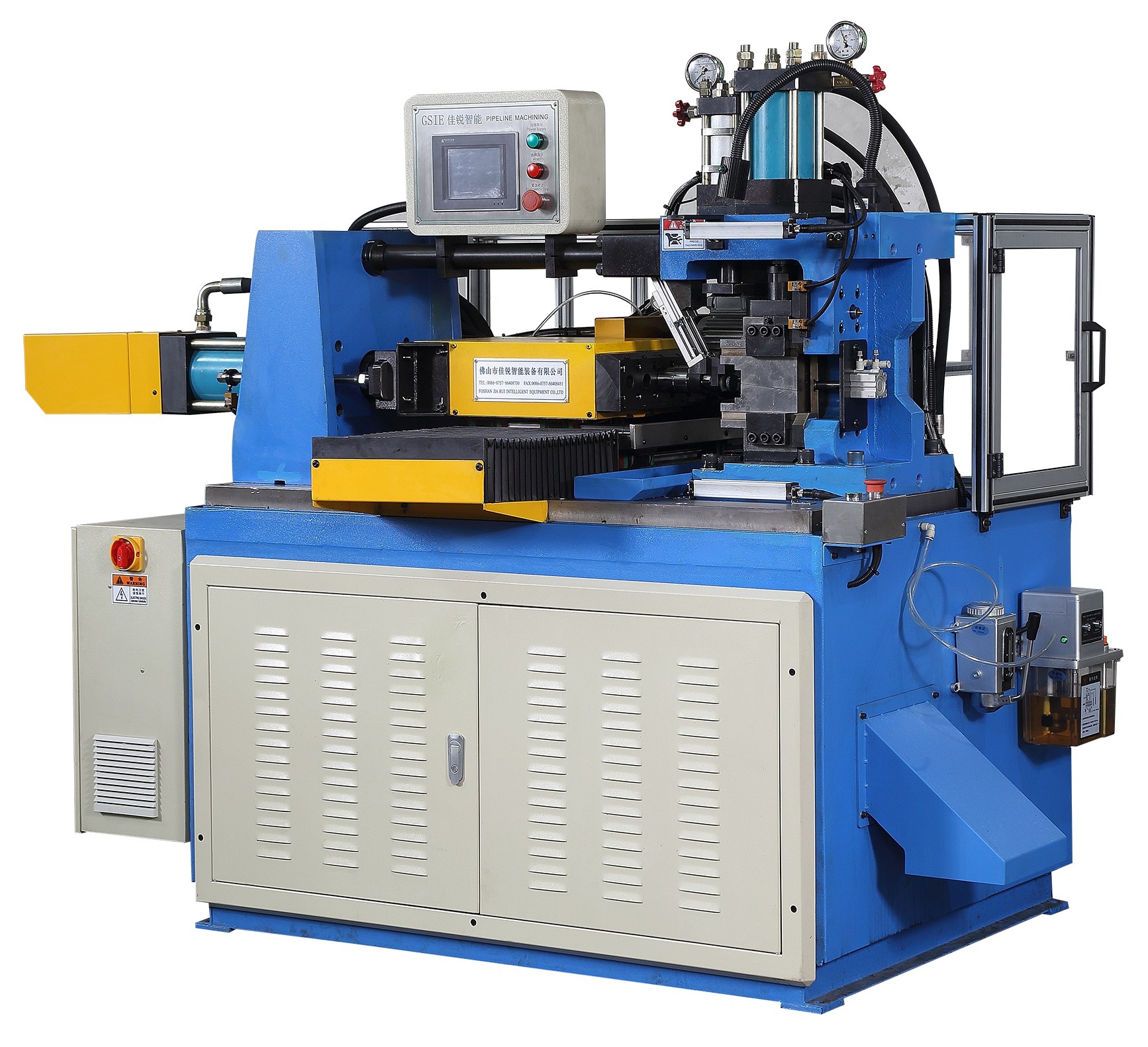

FME-D30-5P/full servo five station tube end forming machine is a tube end forming equipment driven by electric servo for both punch and clamping die. It has three operation modes: automatic, inching and manual, and can be connected with special automatic loading and unloading equipment for fully automatic operation.
This equipment is equipped with five punch stations, each of which can adjust the concentricity, independently adjusting the upper and lower shafts and the left and right shafts. The left and right are
adjusted through the touch screen, and the upper and lower shafts are adjusted mechanically. The punch speed shall reach 100mm/S and be continuously adjusted through the touch screen. The force of the punch and clamping die can be adjusted through the touch screen With continuous oil injection device and lubricating oil filtering and circulating system, the lubricating time and oil volume can be adjusted on the touch screen.
This equipment is an integrated pipe processing machine, integrating extrusion and chamfering forming functions. It is controlled by servo motors and ball screws for workstation switching, featuring strong power and precise positioning. It supports manual loading. One operation can complete the entire cycle of actions, and it can process both inner and outer angles as well as flat ends simultaneously.

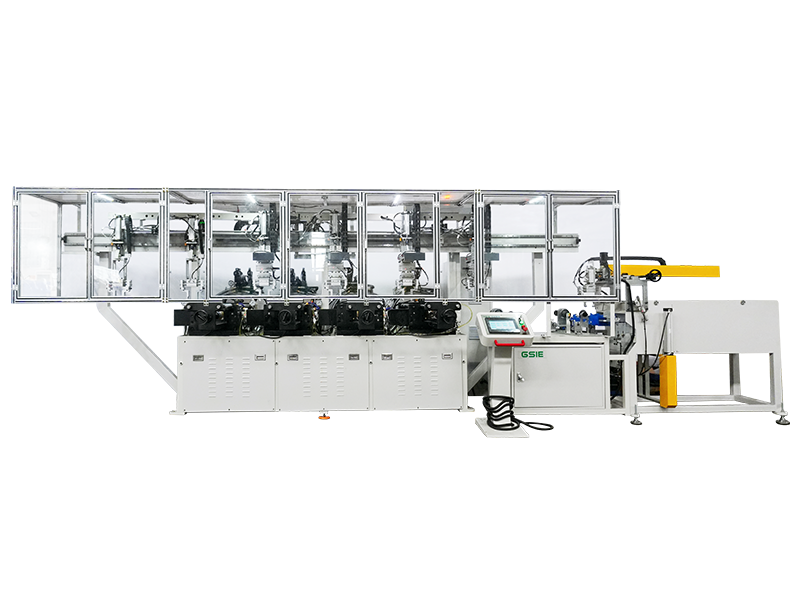

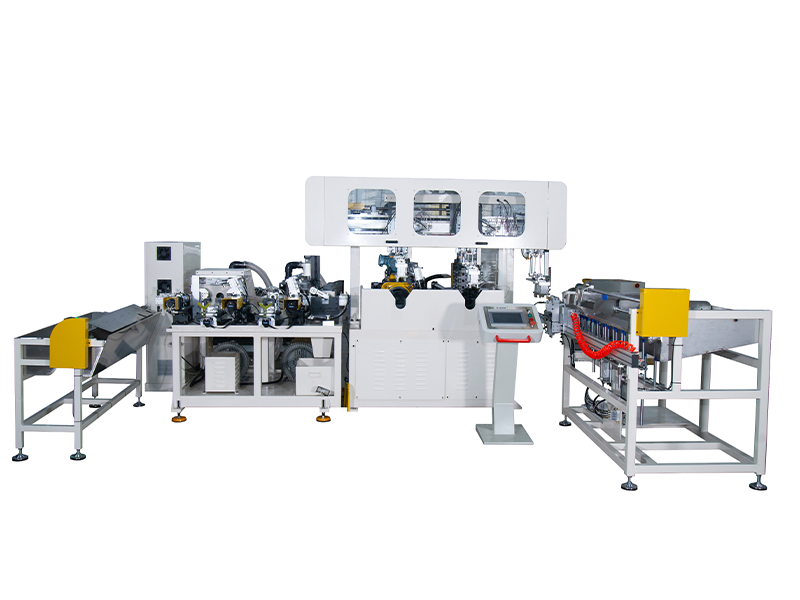

The double tube double end expansion machine (model ZDFM-D65-DE-2P) is an efficient automation equipment designed for synchronous expansion, contraction, and flanging of pipe fittings at both ends.
1. Tube Loader
2. flange loading and cold forming
3. Grooving
4. combined with detection module
5. unloading
