In tube processing, the end of a tube often needs more than a clean cut. For automotive air conditioning pipes, HVAC tubes, refrigeration systems, and fluid connection parts, the tube end may need forming, grooving, chamfering, or other preparation before assembly. When these steps are handled on separate machines, production can depend on repeated loading, manual transfer, and separate positioning at each station.

An end forming and grooving all in one machine is designed to make this workflow more efficient. By combining tube end forming and groove processing in one integrated solution, manufacturers can reduce handling between processes and improve repeatability for small diameter tube parts. For B2B buyers, the value is not only the machine itself, but the ability to build a more stable and automated tube end processing flow.

What Is an End Forming and Grooving All in One Machine

An end forming and grooving all in one machine combines tube end reshaping with groove processing. Tube end forming changes the geometry of a metal tube end to meet connection, sealing, or assembly requirements. Common forming operations include expanding, reducing, flaring, beading, necking, and pipe end closing. Grooving creates a controlled groove feature for tube parts that require accurate connection or positioning.

GSIE provides the ZFMS D20 end forming and grooving all in one machine for small tube end processing. The machine supports a processing pipe diameter of 8X1 to 20X1.5 and a processing pipe fitting length of 150 to 1000 mm. Its automatic feeding servo grooving structure makes it suitable for manufacturers that want to reduce manual work and keep tube end processing more consistent.

Why Combine End Forming and Grooving

Many tube components require several end processes before they can be used in a final product. A tube may need a formed end for connection, a groove for assembly, and accurate positioning so the next process can remain stable. If each process is completed on a separate machine, operators must move the tube between stations and clamp it again. This adds time and may affect repeatability.

Integrated equipment helps manufacturers keep related tube end processes closer together. For repeated parts, this can reduce manual transfer, simplify production planning, and support a more continuous workflow. This is especially useful for factories that process small diameter tubes in batches, where small changes in handling can affect output consistency.

Key Processing Capabilities

Tube End Forming

Tube end forming is used to reshape the end of a metal tube without removing material. It supports secure pipe connections, sealing requirements, and assembly needs in industries such as automotive, HVAC, refrigeration, hydraulic systems, medical equipment, furniture, and other industrial applications. For buyers, the key question is whether the equipment can produce the required tube end shape with stable repeatability.

Grooving for Automotive AC Pipes

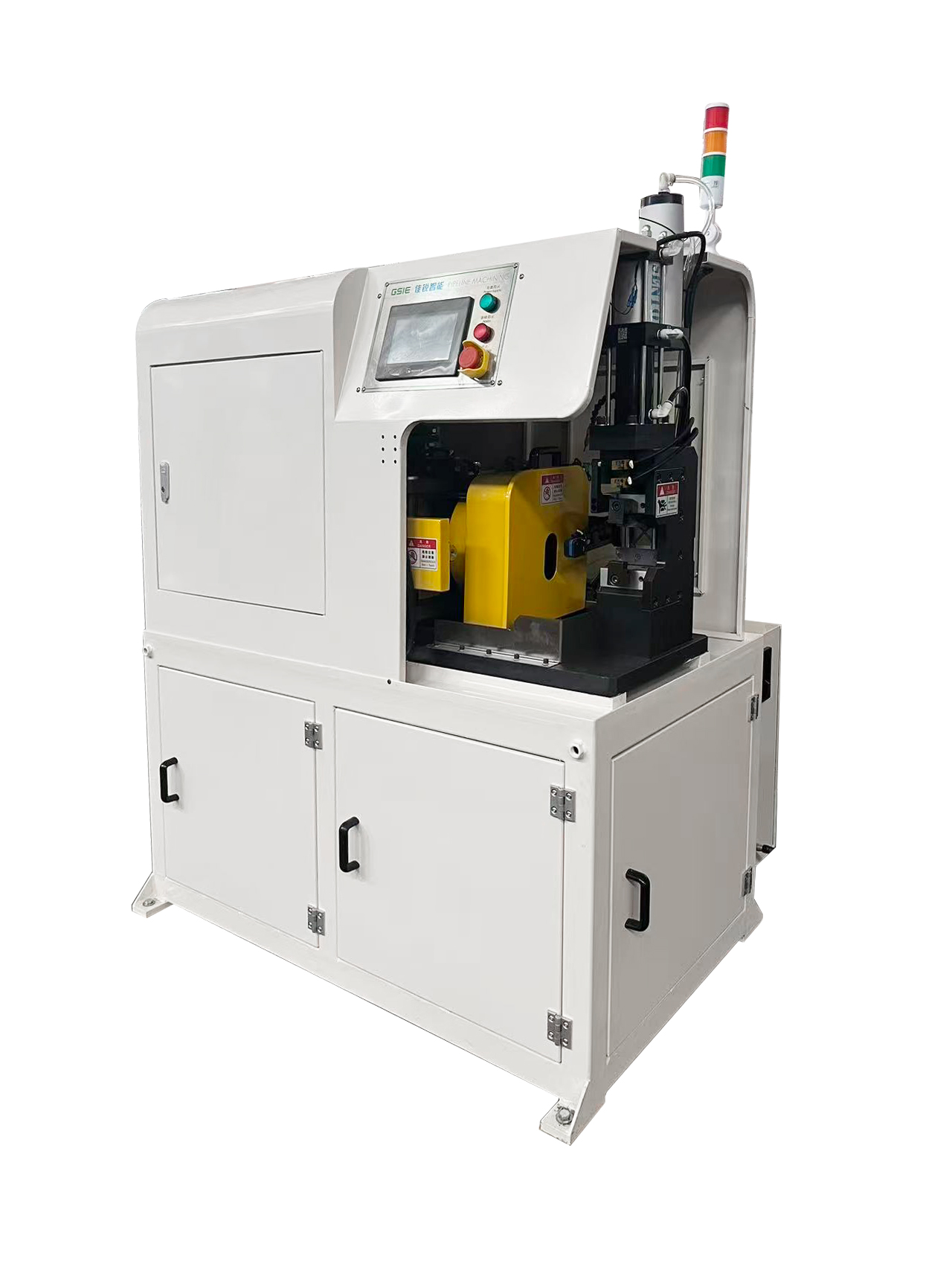

Grooving is important when a tube part requires a defined connection feature. GSIE's FM 30 S grooving machine is designed for automotive air conditioning pipe grooving and supports OD 8 mm to OD 20 mm tubes. This makes it relevant for manufacturers producing small diameter AC pipeline components that require controlled groove processing.

Automatic Feeding and Multi Station Processing

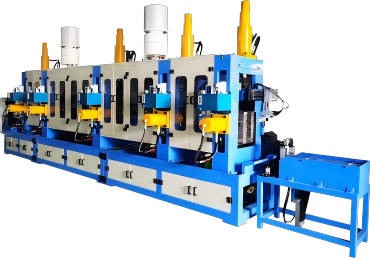

Automation becomes important when production moves beyond single station manual work. The ZFMS D20 uses automatic feeding servo grooving, while GSIE's broader tube end forming machine series includes automatic equipment with loading and unloading, multi station end forming mechanisms, and detection mechanisms. These solutions reflect the same production direction: reducing isolated manual steps and improving tube end processing efficiency.

Application Areas

End forming and grooving all in one machines are most suitable for manufacturers that need repeatable small tube processing. In automotive air conditioning pipe production, tube ends and grooves must support stable assembly. In HVAC and refrigeration tube processing, copper and metal tubes often need consistent end shapes for connection and sealing. In fluid pipeline parts, the tube end geometry affects how the part fits into the next assembly.

These applications usually require more than a simple cutting process. Buyers should evaluate the complete tube end workflow, including the tube diameter, wall thickness, material, required groove shape, end forming shape, tube length, and target production volume.

How to Choose the Right Machine

Before selecting equipment, manufacturers should define the actual tube and process requirements. Important factors include tube diameter, wall thickness, material, processing length, groove position, end forming shape, automation level, and whether the machine needs to connect with other production line equipment.

For small tube end forming and grooving, the ZFMS D20 supports 8X1 to 20X1.5 pipe diameter and 150 to 1000 mm pipe fitting length. For automotive AC pipe grooving, the FM 30 S supports OD 8 mm to OD 20 mm tubes. If the production process involves multiple forming steps or higher automation requirements, GSIE's tube end forming machine series can also be considered as part of the solution.

GSIE End Forming and Grooving Solutions

GSIE focuses on tube processing machinery and automated production solutions, including tube end forming machines, CNC tube and pipe bending machines, cutting machines, crimping machines, and related integrated systems. For manufacturers upgrading tube end processing, GSIE can provide focused grooving machines, end forming and grooving all in one machines, and broader automated tube end forming solutions.

To choose the right configuration, buyers can provide tube diameter, wall thickness, material, pipe length, groove shape, end forming requirement, production volume, and automation needs. With these details, GSIE can help match the equipment to the actual production process rather than treating the machine as a standalone purchase.

FAQ

What is the difference between a grooving machine and an all in one machine

A grooving machine focuses on groove processing. An end forming and grooving all in one machine combines grooving with tube end forming or related tube end processes in one integrated workflow.

What tube sizes can the ZFMS D20 process

The ZFMS D20 supports a processing pipe diameter of 8X1 to 20X1.5 and a processing pipe fitting length of 150 to 1000 mm.

What information should buyers provide before requesting a solution

Buyers should provide tube diameter, wall thickness, material, tube length, required groove shape, end forming shape, production volume, and automation requirements.

Conclusion

End forming and grooving all in one machines help manufacturers build a more efficient tube end processing workflow. By combining key processes such as tube end forming, grooving, and automatic feeding, these machines can reduce handling and support stable production for automotive AC pipes, HVAC tubes, refrigeration tubes, and fluid connection components.

For manufacturers looking to upgrade from separate manual processes to more integrated tube end production, GSIE provides the ZFMS D20 end forming and grooving all in one machine, the FM 30 S grooving machine, and a wider range of tube end forming machine solutions.
